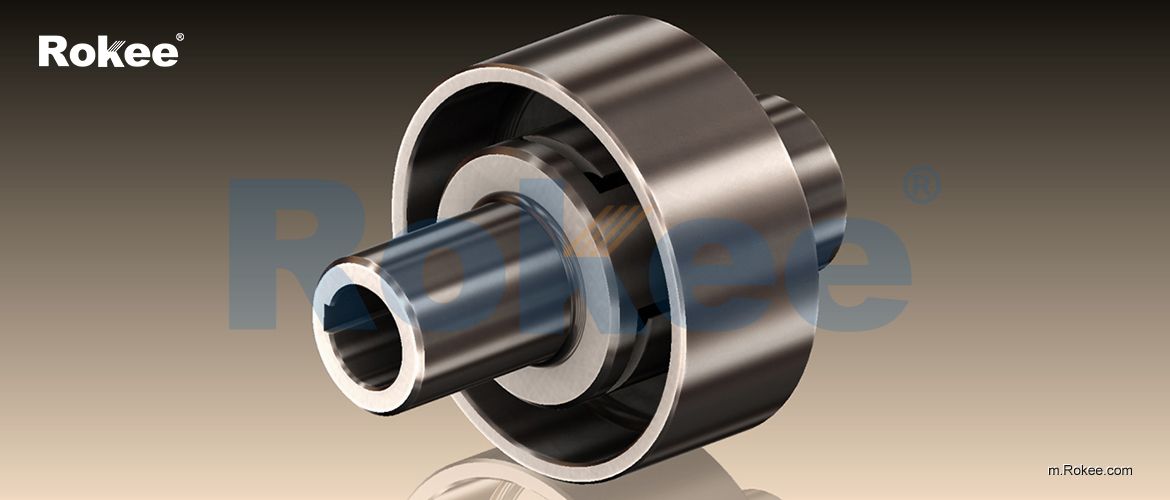

LMZ-I Plum-shaped Flexible Coupling

LMZ-I Plum-shaped Flexible Coupling

LMZ-I Plum-shaped Flexible Coupling adopts split brake wheel design, suitable for situations where braking is required.

LMZ-I Plum-shaped Flexible Coupling

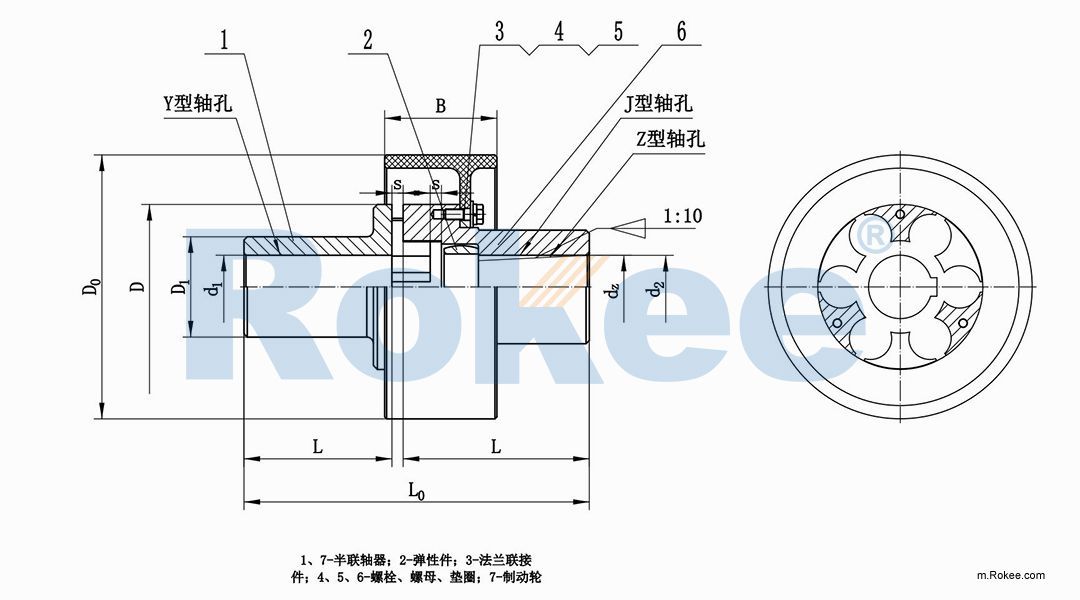

Model	Nominal Torque N.m		Allowable Rotating Speed	Shaft Hole Diameter	L	L0	D	D0	B	Model of Elastic Parts	Weight	Rotational Inertia
	Hardness of Elastic Parts
	a(HA)	b(HD)
	80±5	60±5	r/min	d₁、d₂、d_z							kg	kg.m²
LMZ5-I-160	250	400	4750	25,28,30,32,35,38,40,42,45	50	127	105	160	70	MT5	6.602	0.019
LMZ5-I-200	250	400	3800	25,28,30,32,35,38,40,42,45	50	127	105	200	85	MT5	9.204	0.044
LMZ6-I-200	400	710	3800	30,32,35,38,40,42,45,48	55	143	125	200	85	MT6	11.45	0.052
LMZ7-I-200	630	1120	3800	35,38,40,42,45,48,50,55,56	60	159	145	200	85	MT7	13.96	0.064
LMZ7-I-250	630	1120	3050	35,38,40,42,45,48,50,55,56	60	159	145	250	105	MT7	20.09	0.144
LMZ8-I-250	1120	2240	3050	45,48,50,55,56,60,63,65	70	181	170	250	105	MT8	24.65	0.175
LMZ8-I-315	1120	2240	2400	45,48,50,55,56,60,63,65	70	181	170	315	135	MT8	34.13	0.374
LMZ9-I-315	1800	3550	2400	50,55,56*,60,63,65,70,71,75,80	80	208	200	315	135	MT9	41.67	0.45
LMZ9-I-400	1800	3550	1900	50,55,56*,60,63,65,70,71,75,80	80	208	200	400	170	MT9	65.61	1.259
LMZ10-I-400	2800	5600	1900	60,63,65,70,71,75,80,85,90,95,100	90	230	230	400	170	MT10	74.53	1.4
LMZ10-I-500	2800	5600	1500	60,63,65,70,71,75,80,85,90,95,100	90	230	230	500	210	MT10	110.6	3.472
LMZ11-I-500	4500	9000	1500	70,71,75,80,85,90,95,100,110,120	100	260	260	500	210	MT11	121.7	3.715
LMZ12-I-630	6300	12500	1200	80,85,90,95,100,110,120,125,130	115	297	300	630	265	MT12	213.7	10.24
LMZ13-I-710	11200	20000	1050	90,95,100,110,120,125,130,150	125	323	360	710	300	MT13	341.6	19.99
LMZ14-I-800	12500	25000	950	100,110,120,125,130,140,150 160	135	333	400	800	340	MT14	510.1	39.36
