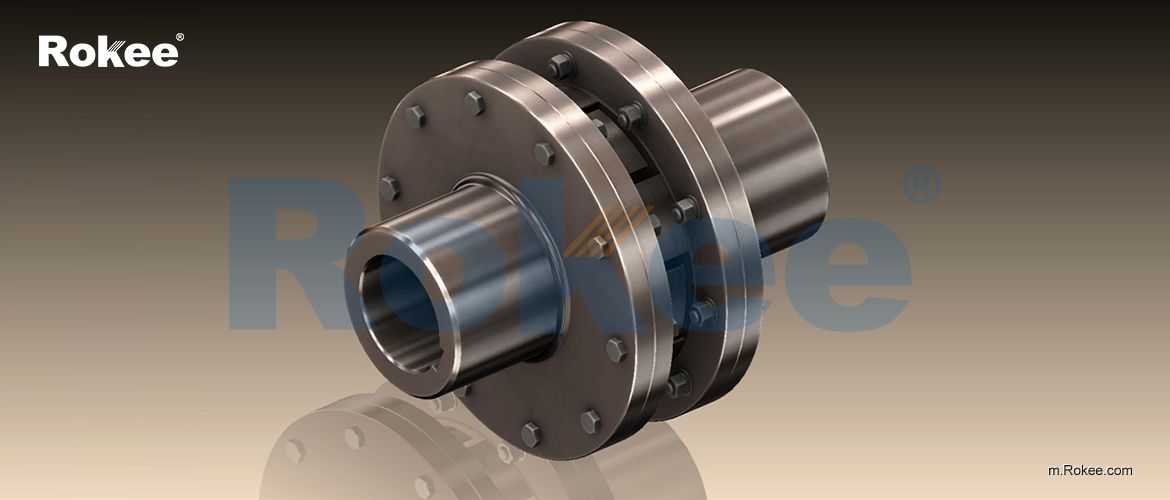

LMS Plum-shaped Flexible Coupling
LMS Plum-shaped Flexible Coupling adopts double transition flange connection, which eliminates the need of axially moving the semi-coupling when replacing the elastomer.

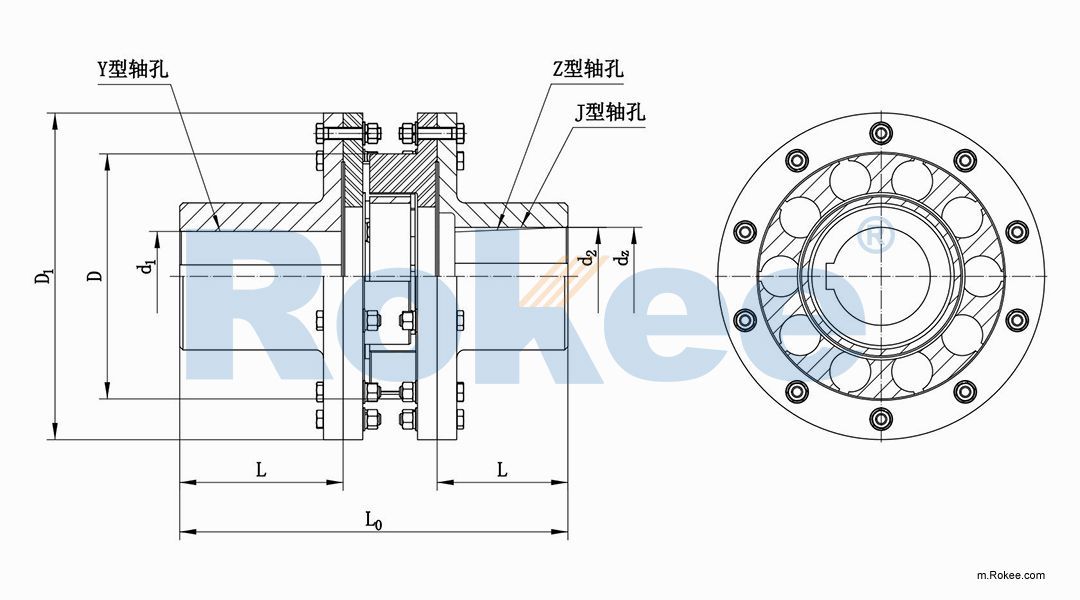

| Model | Nominal Torque Tn N · m | Maximum Torque Tmax N · m | Allowable Rotating Speed [n] r/min | Shaft Hole Diameter d1、d2、dz mm | Shaft Hole Length | D1 mm | D2 mm | H mm | Rotational Inertia kg • m² | Quality kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y型 | J、Z型 | |||||||||||
| L | L1 | L | ||||||||||
| mm | ||||||||||||
| LMS105 | 355 | 640 | 5260 | 18,19 | 30 | 一 | 一 | 145 | 65 | 44 | 0.018 | 8.72 |
| 20,22,24 | 38 | 一 | 一 | |||||||||
| 25,28 | 44 | 一 | 一 | |||||||||
| 30,32,35,38 | 60 | 一 | 一 | |||||||||
| 40,42 | 84 | 一 | 一 | |||||||||
| LMS125 | 450 | 810 | 4490 | 20,22,24 | 38 | 52 | 38 | 170 | 85 | 51 | 0.043 | 14.9 |
| 25,28 | 44 | 62 | 44 | |||||||||
| 30,32,35,38* | 60 | 82 | 60 | |||||||||
| 40,42,45,48,50,55 | 84 | 一 | 一 | |||||||||
| LMS145 | 710 | 1280 | 3910 | 25,28 | 44 | 62 | 44 | 195 | 95 | 59 | 0.078 | 20.4 |
| 30,32,35,38 | 60 | 82 | 60 | |||||||||
| 40,42,45*,48*,50*,55* | 84 | 112 | 84 | |||||||||
| 60,63,65 | 107 | 一 | 一 | |||||||||
| LMS170 | 1250 | 2250 | 3470 | 30,32,35,38 | 60 | 82 | 60 | 220 | 120 | 63 | 0.151 | 31.1 |
| 40,42,45,48,50,55 | 84 | 112 | 84 | |||||||||
| 60,63,65,70,75 | 107 | 一 | 一 | |||||||||
| 80,85 | 132 | 一 | 一 | |||||||||
| LMS200 | 2000 | 3600 | 2930 | 35,38 | 60 | 82 | 60 | 260 | 135 | 74 | 0.319 | 47.2 |
| 40,42,45,48,50,55 | 84 | 112 | 84 | |||||||||
| 60,63,65,70*,75* | 107 | 142 | 107 | |||||||||
| 80,85,90,95 | 132 | 一 | 一 | |||||||||
| LMS230 | 3150 | 5670 | 2630 | 40,42,45,48,50,55 | 84 | 112 | 84 | 290 | 150 | 82 | 0.54 | 64.0 |
| 60,63,65,70,75 | 107 | I42 | 107 | |||||||||
| 80,85,90,95 | 132 | 一 | 一 | |||||||||
| LMS260 | 5000 | 9000 | 2280 | 45,48,50,55 | 84 | 112 | 84 | 335 | 180 | 100 | 1.18 | 105.4 |
| 60,63,65,70,75 | 107 | 142 | 107 | |||||||||
| 80,85,90*,95* | 132 | 172 | 132 | |||||||||
| 100,110,120,125 | 167 | 一 | 一 | |||||||||
| LMS300 | 7100 | 12780 | 1980 | 60,63,65,70,75 | 107 | 142 | 107 | 385 | 200 | 117 | 2.24 | 151.0 |
| 80,85,90,95 | 132 | 172 | 132 | |||||||||
| 100,110,120,125 | 167 | 一 | 一 | |||||||||
| 130,140 | 202 | 一 | 一 | |||||||||
| LMS360 | 12500 | 22500 | 1650 | 60,63,65,70,75 | 107 | 142 | 107 | 460 | 225 | 129 | 4.94 | 233.5 |
| 80,85,90,95 | 132 | 172 | 132 | |||||||||
| 100,110,120*,125* | 167 | 212 | 167 | |||||||||
| 130,140,150 | 202 | 一 | 一 | |||||||||
| LMS400 | 14000 | 25200 | 1250 | 80,85,90,95 | 132 | 172 | 132 | 500 | 250 | 129 | 7.33 | 293.3 |
| 100,110,120,125 | 167 | 212 | 167 | |||||||||
| 130,140,150 | 202 | 一 | 一 | |||||||||
| 160 | 242 | 一 | 一 | |||||||||
