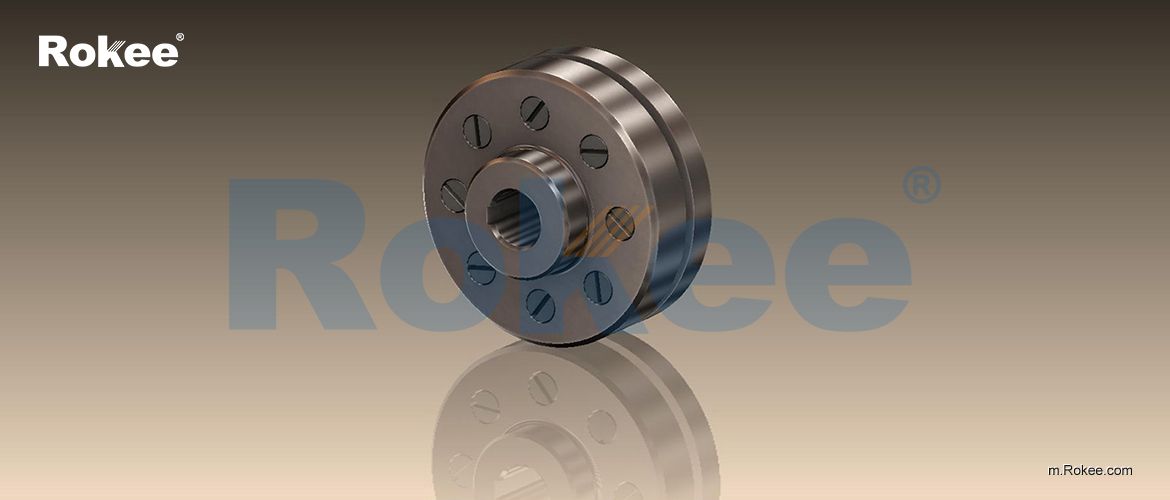

LTZ/TLL Elastic Sleeve Pin Coupling

LTZ/TLL Elastic Sleeve Pin Coupling is designed with a brake wheel, suitable for situations where braking is required.

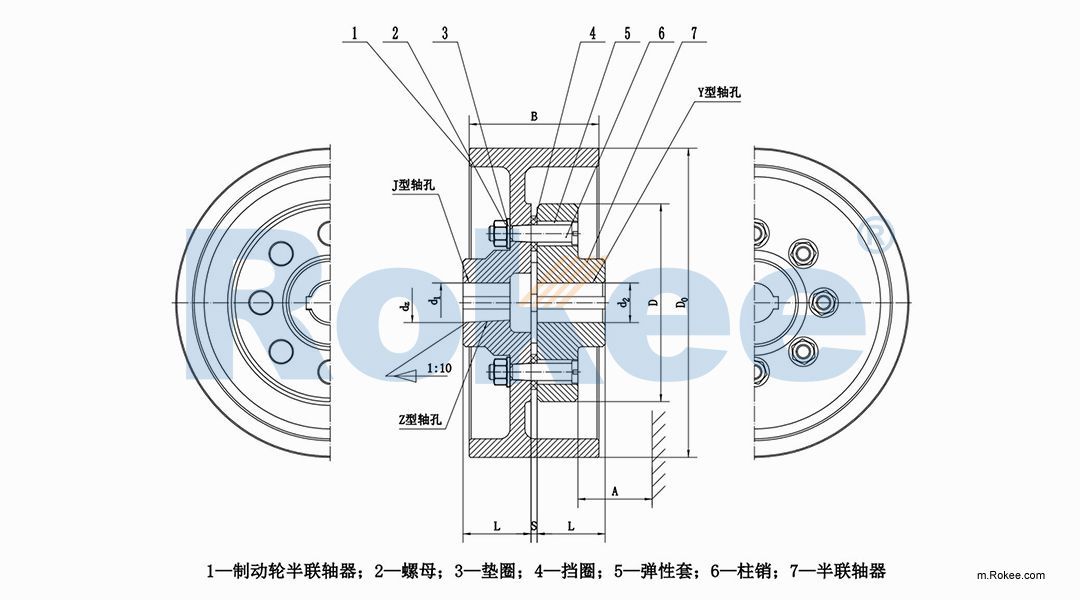

Model	Nominal Torque N ·m	Allowable Rotating Speed rpm	Shaft Hole Diameter d₁、d₂	Shaft Hole Length L			D₀ mm	D₁ mm	B mm	b mm	S mm	A mm	Rotational Inertia Kg ·m2	Weight kg
				Y型	J、Z型
				L	L₁	L
				mm
LTZ1	224	3800	25,28	44	62	44	200	56	85	40	5	45	0.05	8.3
LTZ1	224	3800	30,32,35	60	82	60	200	56	85	40	5	45	0.05	8.3
LTZ2	355	3000	32,35,38	60	82	60	250	71	105	50	5	45	0.15	15.3
LTZ2	355	3000	40,42	84	112	84	250	71	105	50	5	45	0.15	15.3
LTZ3	560	2400	40,42,45,48	84	112	84	315	80	135	65	5	45	0.45	30.3
LTZ4	1120	2400	45,48,50,55	84	112	84	315	95	135	65	6	65	0.50	40.0
LTZ4	1120	2400	60,63	107	142	107	315	95	135	65	6	65	0.50	40.0
LTZ5	1600	2400	50,55	84	112	84	315	110	135	65	6	65	1.26	47.3
LTZ5	1600	2400	60,63,65,70	107	142	107	315	110	135	65	6	65	1.26	47.3
LTZ6	3150	1900	63,65,70,75	107	142	107	400	150	170	81	8	80	1.63	93.0
LTZ6	3150	1900	80,85,90,95	132	172	132	400	150	170	81	8	80	1.63	93.0
LTZ7	6300	1500	80,85,90,95	132	172	132	500	190	210	100	10	100	4.04	172
LTZ7	6300	1500	100,110	167	212	167	500	190	210	100	10	100	4.04	172
LTZ8	12500	1200	100,110,120,125	167	212	167	630	220	265	127	12	130	15.0	304
LTZ8	12500	1200	130	202	252	202	630	220	265	127	12	130	15.0	304
LTZ9	22400	1000	120,125	167	212	167	710	280	300	143	14	180	33.0	577
			130,140,150	202	252	202
			160,170	242	302	242

Allowable Compensation Amount	Model of Coupling
Allowable Compensation Amount	LT1	LT2	LT3	LT4	LT5 LTZ1	LT6 LTZ2	LT7 LTZ3	LT8 LTZ4	LT9 LTZ5	LT10 LTZ6	LT11 LTZ7	LT12 LTZ8	LT13 LTZ9
△Y/mm	0.2				0.3			0.4			0.5		0.6
△α/( ° )	1.5					1					0.5
