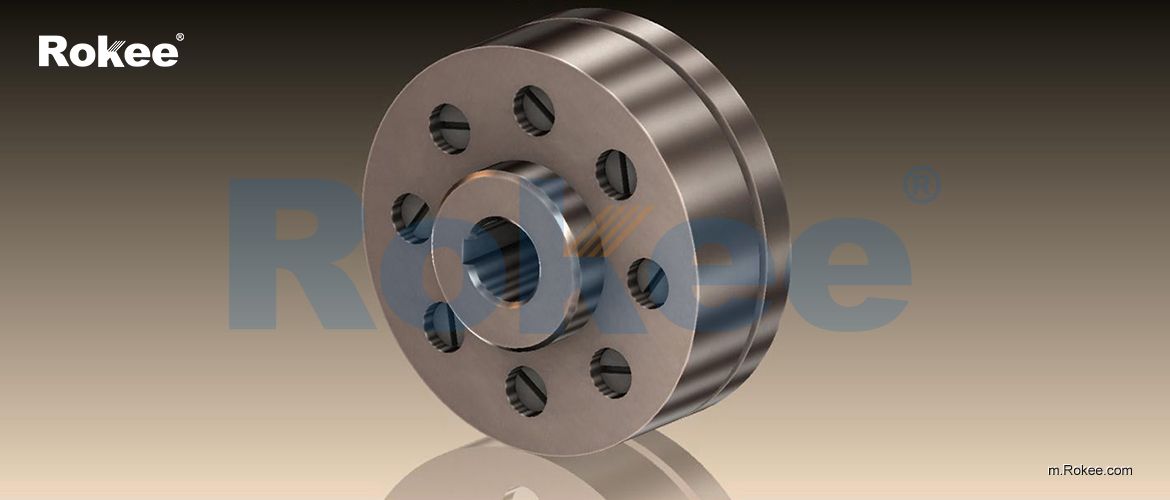

LT/TL Elastic Sleeve Pin Coupling

LT/TL Elastic Sleeve Pin Coupling is the basic form of this series of couplings.

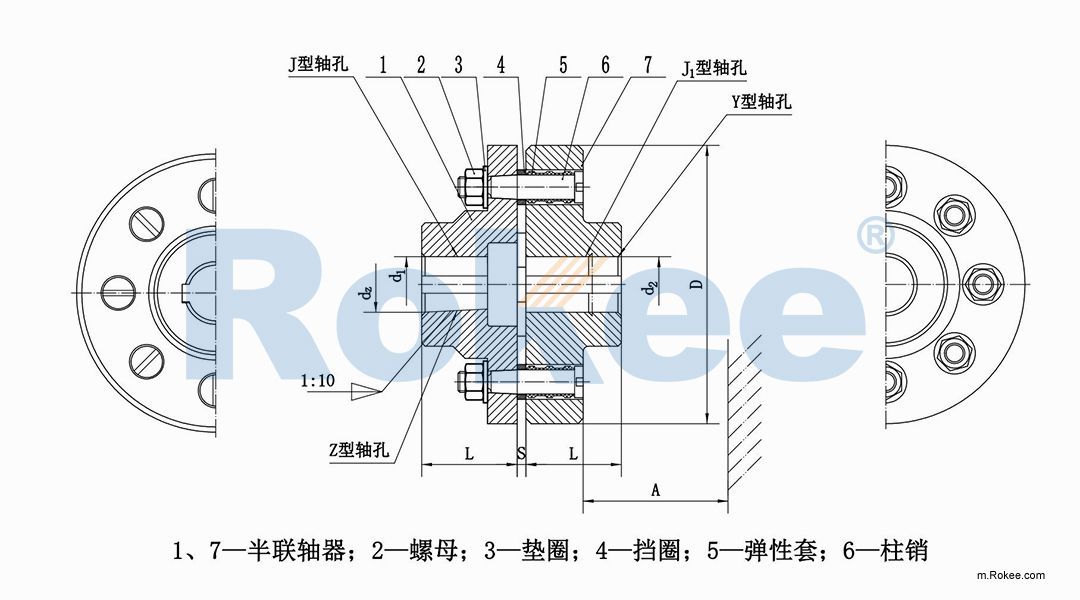

Model	Nominal Torque N ·m	Allowable Rotating Speed rpm	Shaft Hole Diameter d₁、d₂	Shaft Hole Length L			D mm	D₁ mm	S mm	A mm	Rotational Inertia Kg ·m²	Weight kg
				Y型	J、Z型
				L	L₁	L
				mm
LT1	16	8800	10,11	22	25	22	71	22	3	18	0.0004	0.7
LT1	16	8800	12,14	27	32	27	71	22	3	18	0.0004	0.7
LT2	25	7600	12,14	27	32	27	80	30	3	18	0.001	1.0
LT2	25	7600	16,18,19	30	42	30	80	30	3	18	0.001	1.0
LT3	63	6300	16,18,19	30	42	30	95	35	4	35	0.002	2.2
LT3	63	6300	20,22	38	52	38	95	35	4	35	0.002	2.2
LT4	100	5700	20,22,24	38	52	38	106	42	4	35	0.004	3.2
LT4	100	5700	25,28	44	62	44	106	42	4	35	0.004	3.2
LT5	224	4600	25,28	44	62	44	130	56	5	45	0.011	5.5
LT5	224	4600	30,32,35	60	82	60	130	56	5	45	0.011	5.5
LT6	355	3800	32,35,38	60	82	60	160	71	5	45	0.026	9.6
LT6	355	3800	40,42	84	112	84	160	71	5	45	0.026	9.6
LT7	560	3600	40,42,45,48	84	112	84	190	80	5	45	0.06	15.7
LT8	1120	3000	40,42,45,48,50,55	84	112	84	224	95	6	65	0.13	24.0
LT8	1120	3000	60,63,65	107	142	107	224	95	6	65	0.13	24.0
LT9	1600	2850	50,55	84	112	84	250	110	6	65	0.20	31.0
LT9	1600	2850	60,63,65,70	107	142	107	250	110	6	65	0.20	31.0
LT10	3150	2300	63,65,70,75	107	142	107	315	150	8	80	0.64	60.2
LT10	3150	2300	80,85,90,95	132	172	132	315	150	8	80	0.64	60.2
LT11	6300	1800	80,85,90,95	132	172	132	400	190	10	100	2.06	114
LT11	6300	1800	100,110	167	212	167	400	190	10	100	2.06	114
LT12	12500	1450	100,110,120,125	167	212	167	475	220	12	130	5.00	212
LT12	12500	1450	130	202	252	202	475	220	12	130	5.00	212
LT13	22400	1150	120,125	167	212	167	600	280	14	180	16.0	416
			130,140,150	202	252	202
			160,170	242	302	242

« LT/TL Elastic Sleeve Pin Coupling » Post Date: 2020/6/16
