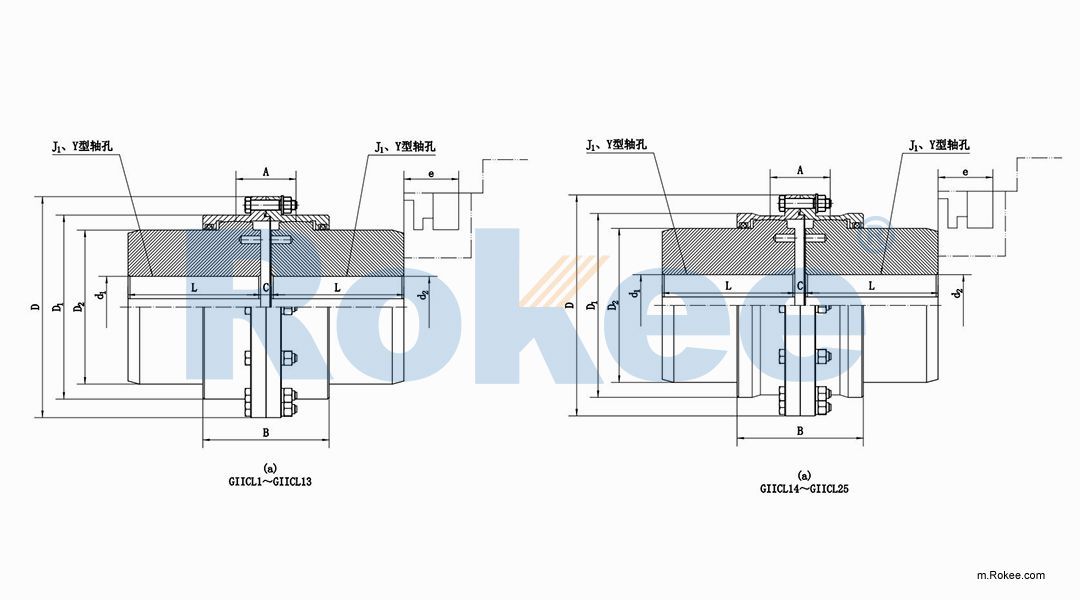

GIICL Drum Gear Coupling

GIICL drum gear coupling has small inner teeth width, which can transfer torque while compensating for small axial displacement. Also, its structure is compact and the moment of inertia is low.

Model	Rated Torque	Allowable Rotating Speed	Shaft Hole Diameter	Shaft Hole Length L		D	D₁	D₂	C	H	A	B	e	Rotational Inertia kg · m²	Quality kg	Grease ml
	Rated Torque	Allowable Rotating Speed	Shaft Hole Diameter	Y型	J₁型	D	D₁	D₂	C	H	A	B	e
	kN·m	rpm	d₁、d₂	mm
GIICL1	0.63	6500	16,18,19	42		103	71	50	8	2	36	76	38	0.0016	3.4	51
			20,22,24	52	38									0.0030	3.2
			25,28	62	44									0.0031	3.3
			30,32,35	82	60									0.0032	3.5
GIICL2	1.00	6000	20,22,24	52		115	83	60	8	2	42	88	42	0.0024	4.6	70
			25,28	62	44									0.0023	4.1
			30,32,35,38	82	60									0.0024	4.5
			40,42,45	112	84									0.0025	4.6
GIICL3	1.60	5600	22,24	52	38	127	95	75	8	2	44	90	42	0.0044	6.1	68
			25,28	62	44									0.0042	5.5
			30,32,35,38	82	60									0.045	6.3
			40,42,45,48,50,55,56	112	84									0.0101	6.9
GIICL4	2.8	5100	38	82	60	149	116	90	8	2	49	98	42	0.0205	9.5	87
			40,42,45,48,50,55,56	112	84									0.0228	11.3
			60,63,65	142	107									0.0234	10.5
GIICL5	4.5	4600	40,42,45,48,50,55,56	112	84	167	134	105	10	2.5	55	108	42	0.418	15.9	125
GIICL5	4.5	4600	60,63,65,70,71,75	142	107	167	134	105	10	2.5	55	108	42	0.0444	16.0	125
GIICL6	6.30	4300	45,48,50,55,56	112	84	187	153	125	10	2.5	56	110	42	0.0706	21.2	148
			60,63,65,70,71,75	142	107									0.0777	23.0
			80,85,90	172	132									0.0809	22.1
GIICL7	8.00	4000	50,55,56	112	84	204	170	140	10	2.5	60	118	42	0.103	27.6	175
			60,63,65,70,71,75	142	107									0.115	33.1
			80,85,90,95	172	132									0.1298	39.2
			100,(105)	212	167									0.151	47.5
GIICL8	11.20	3700	55,56	112	84	230	186	155	12	3	67	142	47	0.167	35.5	268
			60,63,65,70,71,75	142	107									0.188	42.3
			80,85,90,95	172	132									0.210	49.7
			100,110,(115)	212	167									0.241	60.2
GIICL9	18.00	3350	60,63,65,70,71,75	142	107	256	212	180	12	3	69	146	47	0.316	55.6	310
			80,85,90,95	172	132									0.356	65.6
			100,110,120,125	212	167									0.413	79.6
			130,(135)	252	202									0.470	95.8
GIICL10	25.00	3000	65,70,71,75	142	107	287	239	200	14	3.5	78	164	47	0.511	72	472
			80,85,90,95	172	132									0.573	84.4
			100,110,120,125	212	167									0.659	101
			130,140,150	252	202									0.745	119
GIICL11	35.50	2700	70,71,75	142	107	325	276	235	14	3.5	81	170	47	1.454	97	550
			80,85,90,95	172	132									1.096	114
			100,110,120,125	212	167									1.235	138
			130,140,150	252	202									1.340	161
			160,170,(175)	302	242									1.588	189
GIICL12	56.00	2450	75	142	107	362	313	270	16	4	89	190	49	1.623	128	695
			80,85,90,95	172	132									1.828	150
			100,110,120,125	212	167									2.113	205
			130,140,150	252	202									2.40	213
			160,170,180	302	242									2.728	248
			190,200	352	282									3.055	285
GIICL13	80.00	2200	150	252	202	412	350	300	18	4.5	98	208	49	3.951	222	1019
			160,170,180,(185)	302	242									4.363	246
			190,200,220,(225)	352	282									4,541	242
GIICL14	125	2000	170,180,(185)	302	242	462	420	335	22	5.5	172	296	63	8.025	421	2900
			190,200,220	352	282									8.8	476
			240,250	410	330									9.275	544
GIICL15	180	1800	190,200,220	352	282	512	470	380	22	5.5	182	316	63	14.30	608	3700
			240,250,260	410	330									15.85	696
			280,(285)	470	380									17.45	786
GIICL16	250	1600	220	352	282	580	522	430	28	7	209	354	67	23.925	799	4500
			240,250,260	410	330									26.45	913
			280,300,320	470	380									29.1	1027
GIICL17	355	1400	250,260	410	330	644	582	490	28	7	198	364	67	43.095	1176	4900
			280,(295),300,320	470	380									47.525	1322
			340,360,(365)	550	450									53.725	1352
GIICL18	500	1210	280,(295),300,320	470	380	726	658	540	28	8	222	430	75	78.525	1698	7000
			340,360,380	550	450									87.75	1948
			400	650	540									99.5	2278
GIICL19	710	1050	300,320	470	380	818	748	630	32	8	232	440	75	136.75	2249	8900
			340,(350),360,380,(390)	550	450									153.75	2591
			400,420,440,450,460	650	540									175.5	3026
			(470)	650	540									175.5	3026
GIICL20	1000	910	360,380,(390)	550	450	928	838	720	32	10.5	247	470	75	261.75	3384	11000
			400,420,440,450,460	650	540									299	3984
			480,500	650	540									299	3984
			530,(540)	800	680									360.75	4430
GIICL21	1400	800	400,420,440,450,460	650	540	1022	928	810	40	11.5	255	490	75	461.600	3912	13000
			480,500	650	540									461.600	3912
			530,560,600	800	680									449.4	3754
GIICL22	1800	700	450,460,480,500	650	540	1134	1036	915	40	13	265	510	75	734.3	4970	16000
			530,560,600,630	800	680									837.00	5408
			670,(680)	一	780									785.40	4478
GIICL23	2500	610	530,560,600,630	800	680	1282	1178	1030	50	14.5	299	580	80	1517	10013	28000
GIICL23	2500	610	670,(700),710,750,(770)	一	780	1282	1178	1030	50	14.5	299	580	80	1725	11553	28000
GIICL24	3550	500	560,600,630	800	680	1428	1322	1175	50	16.5	317	610	80	2486	12915	33000
			670,(700),710,750	一	780									2838.5	15015
			800,850	—	880									3131.75	16615
GIICL25	5600	420	670,(700),710,750	一	780	1644	1538	1390	50	19	325	620	80	5082.00	15760	43000
			800,850	一	880									5344.10	15515
			900,950	一	980									5484.00	15054
			1000,(1040)	一	1100									5615.2	14513
