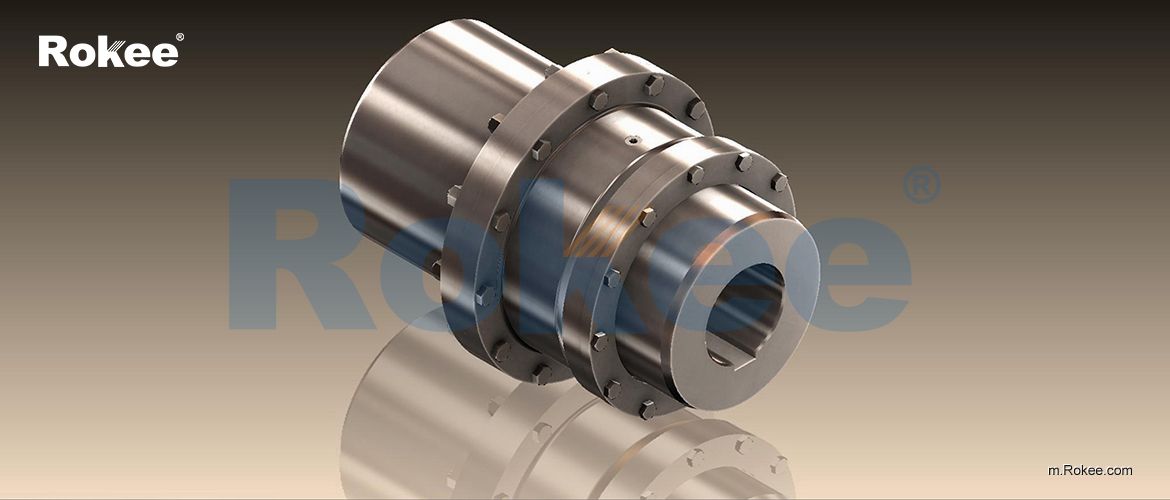

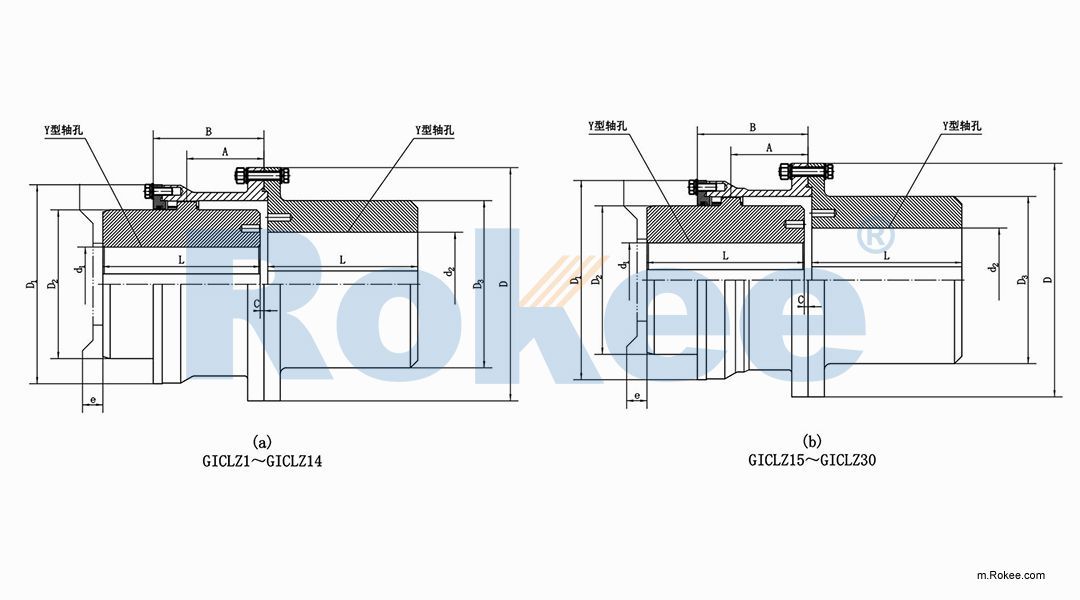

GICLZ Drum Gear Coupling

Half of the GICLZ drum gear coupling adopts a non-toothed semi-coupling sleeve structure, which is usually connected in pairs or used in occasions with small angular displacement.

Model	Rated Torque kN·m	Allowable Rotating Speed rpm	Shaft Hole Diameter d₁、d₂	Shaft Hole Length L	D	D₁	D₂	D₃	B₁	C	C₁	Rotational Inertia kg·m²	Quality kg
				Y
				L
			mm
GICLZ1	0.800	7100	16,18,19	42	125	95	60	80	57	24	一	0.0084	5.4
			20,22,24	52						14
			25,28	62						6.5
			30,32,35,38	82							19
			40,42,45,48,50*	112							19
GICLZ2	1.400	6300	25,28	62	145	120	75	95	67	16	—	0.018	9.2
			30,32.35,38	82						8	18
			40,42,45,48,50,55,56*	112							19
			60*	142							19
GICLZ3	2.800	5900	30,32,35,38	82	170	140	95	115	77	7	29	0.0427	16.4
			40,42,45,48,50,55,56	112							22
			60,63,65,70*	142							22
GICLZ4	5.000	5400	32,35,38	82	195	165	115	130	89	8.5	42	0.076	22.7
			40,42,45,48,50,55,56	112						19	22
			60,63,65,70,71,75	142
			80*	172
GICLZ5	8.000	5000	40,42,45,48,50,55,56	112	225	183	130	150	99	9.5	31	0.0149	36.2
			60,63,65,70,71,75	142							26
			80,85,90	172							28
GICLZ6	11.200	4800	48,50,55,56	112	240	200	145	170	109	11.5	41	0.24	46.2
			60,63,65,70,71,75	142						9.5	26
			80,85,90,95*	172							28
			100*	212							28
GICLZ7	15.0	4500	60,63,65,70,71,75	142	260	230	160	195	122	10.5	31	0.43	68.4
			80,85,90,95	172							28
			100,110,120	212							28
GICLZ8	21.2	4000	65,70,71,75	142	280	245	175	210	132	12	41	0.61	81.1
			80,85,90,95	172							28
			100,110,120*	212
			130*	252
GICLZ9	26.5	3500	70,71,75	142	315	270	200	225	142	18	53	0.94	100.1
			80,85,90,95	172						13	30
			100,110,120,125	212
			130,140	252
GICLZ10	42.5	3200	80,85,90,95	172	345	300	220	250	165	14	51	1.67	147.1
			100,110,120,125	212							30
			130,140,150*	252							37
			160*	302							37
GICLZ11	60.0	3000	100,110,120	212	380	330	260	285	180	14	37	2.98	206.3
			130,140,150	252
			160,170,180	302
GICLZ12	80.0	2600	120	212	440	380	290	325	208	14	65	5.31	284.5
			130,140,150	252							37
			160,170,180	302
			190,200	352
GICLZ13	112	2300	140,150	252	480	420	320	360	238	15	62	9.26	402.0
			160,170,180	302							40
			190,200,220*	352							40
GICLZ14	160	2100	160,170,180	302	520	465	360	410	266	16	50	15.92	582.2
			190,200,220	352							40
			240,250	410							40
GICLZ15	224	1900	190,200,220	352	580	510	400	450	278	17	41	25.78	778.2
			240,250,260*	410							45
			280*	470							45
GICLZ16	355	1600	200,220	352	680	595	465	500	320	16.5	65	16.89	1071.0
			240,250,260	410						15.5	45
			280,300,320	470						15.5	45
GICLZ17	400	1500	220	352	720	645	495	530	336	17	81	60.59	1210.0
			240,250,260	410							46
			280,300,320	470							46
GICLZ18	500	1400	240,250,260	410	775	675	520	540	351	16.5	53	81.75	1475.0
			280,300,320	470							48
			340*	550							48
GICLZ19	630	1300	260	410	815	715	560	580	372	17	74	101.57	1603.0
			280,300,320	470							48
			340,360*	550							48
GICLZ20	710	1200	280,300,320	470	855	755	585	600	393	20	51	140.03	2033.0
GICLZ20	710	1200	340,360,380*	550	855	755	585	600	393	20	51	140.03	2033.0
GICLZ21	900	1100	300,320	470	915	795	620	640	404	20	51	183.49	2385.0
			340,360,380	550
			400*	650
GICLZ22	950	950	340,360,380	550	960	840	665	680	415	20	51	235.04	2452.0
GICLZ22	950	950	400,420*	650	960	840	665	680	415	20	51	235.04	2452.0
GICLZ23	1120	900	360,380	550	1010	890	710	720	435	20	51	323.16	3332.0
GICLZ23	1120	900	400,420,450*	650	1010	890	710	720	435	20	55	323.16	3332.0
GICLZ24	1250	875	380	550	1050	925	730	760	445	22	53	387.97	3639.0
GICLZ24	1250	875	400,420,450,480*	650	1050	925	730	760	445	22	57	387.97	3639.0
GICLZ25	1400	850	400,420,450,480,500*	650	1120	970	770	800	465	22	58	485.96	4073.0
GICLZ26	1600	825	420,450,480,500	650	1160	990	800	850	475	22	58	573.64	4527.0
GICLZ26	1600	825	530*	800	1160	990	800	850	475	22	58	573.64	4527.0
GICLZ27	1800	800	450,480,500	650	1210	1060	850	900	479	22	58	789.74	5485.0
GICLZ27	1800	800	530,560*	800	1210	1060	850	900	479	22	58	789.74	5485.0
GICLZ28	2000	770	480,500	650	1250	1080	890	960	517	28	63	960.26	6050.0
GICLZ28	2000	770	530,560,600*	800	1250	1080	890	960	517	28	63	960.26	6050.0
GICLZ29	2800	725	500	650	1340	1200	960	1010	517	28	65	1268.98	7090.0
GICLZ29	2800	725	530,560,600,630*	800	1340	1200	960	1010	517	28	63	1268.98	7090.0
GICLZ30	3500	700	530,560,600,630*	800	1390	1240	1005	1070	525	28	63	1822.02	9264.0
GICLZ30	3500	700	670*	900	1390	1240	1005	1070	525	28	63	1822.02	9264.0
