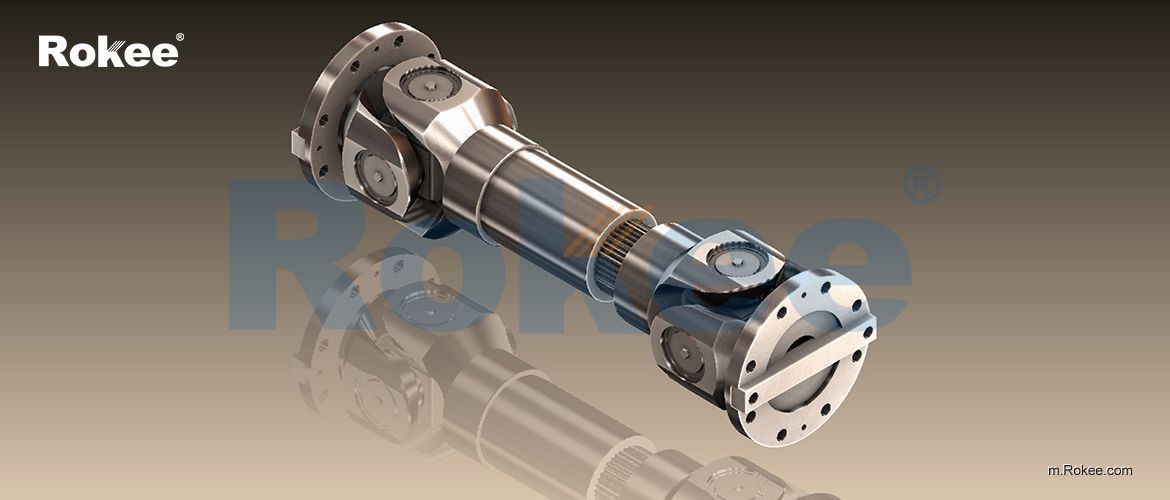

SWC-DH Short Telescopic Welded Universal Coupling

SWC-DH Universal Coupling adopts integrated fork head layout, with the rotary diameter of 1600mm and torque transmission distance of more than 30m. SWC-DH Cardan Shaft is widely used in steel rolling machinery, crane transport machinery and other heavy equipment fields.

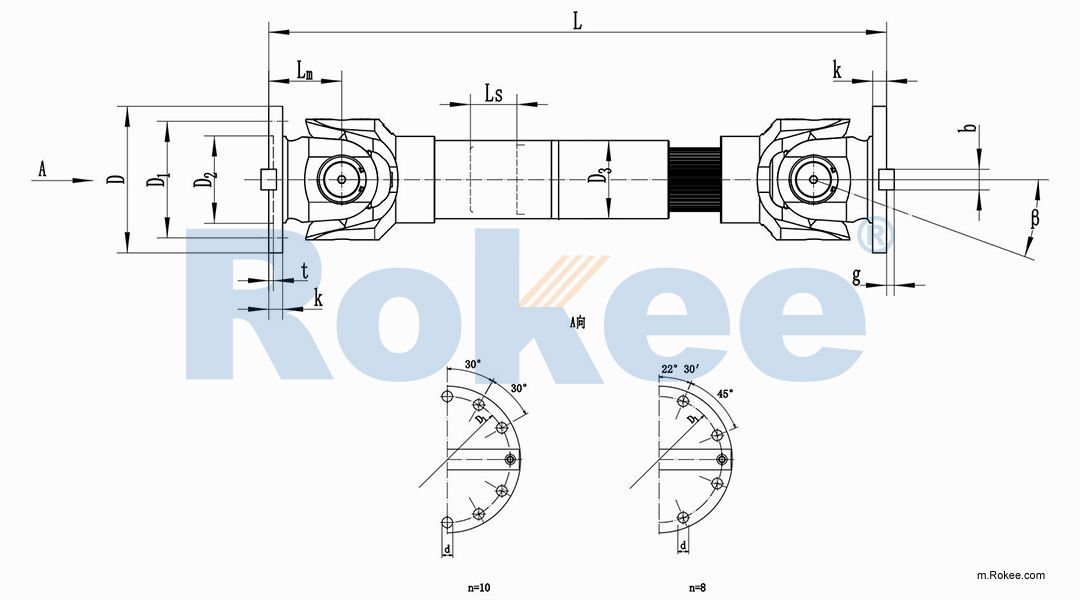

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	Size/mm										Rotational Inertia (kg ·m²)		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Expansion Amount L_s mm	L_min	D₁ (js11)	D₂ (H7)	D₃	L_m	n×φd	k	t	b (h9)	g	L_min/ mm	Increase 100mm	L_min mm	Increase 100mm
SWC180DH1	180	22.4	11.2	0.245	≤15	55	600	155	105	114	110	8×φ17	17	5	24	7	0.162	0.007	56	2.8
SWC180DH2	180	22.4	11.2	0.245	≤15	105	650	155	105	114	110	8×φ17	17	5	24	7	0.165	0.007	58	2.8
SWC200DH1	200	36	18	1.115	≤15	50	620	170	120	133	115	8×φ17	17	5	38	8	0.261	0.013	74	3.7
SWC200DH2	200	36	18	1.115	≤15	120	680	170	120	133	115	8×φ17	17	5	38	8	0.276	0.013	76	3.7
SWC225DH1	225	56	28	7.812	≤15	70	640	196	135	152	120	8xφ17	20	5	32	9	0.397	0.023	92	4.9
SWC225DH2	225	56	28	7.812	≤15	140	710	196	135	152	120	8xφ17	20	5	32	9	0.415	0.023	95	4.9
SWC250DH1	250	80	40	2.82×101	≤15	70	735	218	150	168	140	8×φ19	25	5	40	12	0.885	0.028	136	5.3
SWC250DH2	250	80	40	2.82×101	≤15	130	795	218	150	168	140	8×φ19	25	5	40	12	0.9	0.028	148	5.3
SWC285DH1	285	120	58	8.82×101	≤15	80	880	245	170	194	160	8×φ21	27	7	40	15	1.801	0.051	221	6.3
SWC285DH2	285	120	58	8.82×101	≤15	150	950	245	170	194	160	8×φ21	27	7	40	15	1.876	0.051	229	6.3
SWC315DH1	315	160	80	2.79×102	≤15	90	980	280	185	219	180	10×φ23	32	8	40	15	3.163	0.080	334	8
SWC315DH2	315	160	80	2.79×102	≤15	180	1070	280	185	219	180	10×φ23	32	8	40	15	3.331	0.080	346	8
SWC350DH1	350	225	110	7.44×102	≤15	90	1070	310	210	245	194	10×p23	35	8	50	16	5.330	0.146	452	11.5
SWC350DH2	350	225	110	7.44×102	≤15	190	1170	310	210	245	194	10×p23	35	8	50	16	5.721	0.146	475	11.5
SWC390DH1	390	320	160	1.86×103	≤15	90	1200	345	235	267	215	10×φ25	40	8	70	18	10.76	0.222	600	15
SWC390DH2	390	320	160	1.86×103	≤15	190	1300	345	235	267	215	10×φ25	40	8	70	18	l1.13	0.222	655	15
