RWC Ball And Drum Gear Drum Coupling

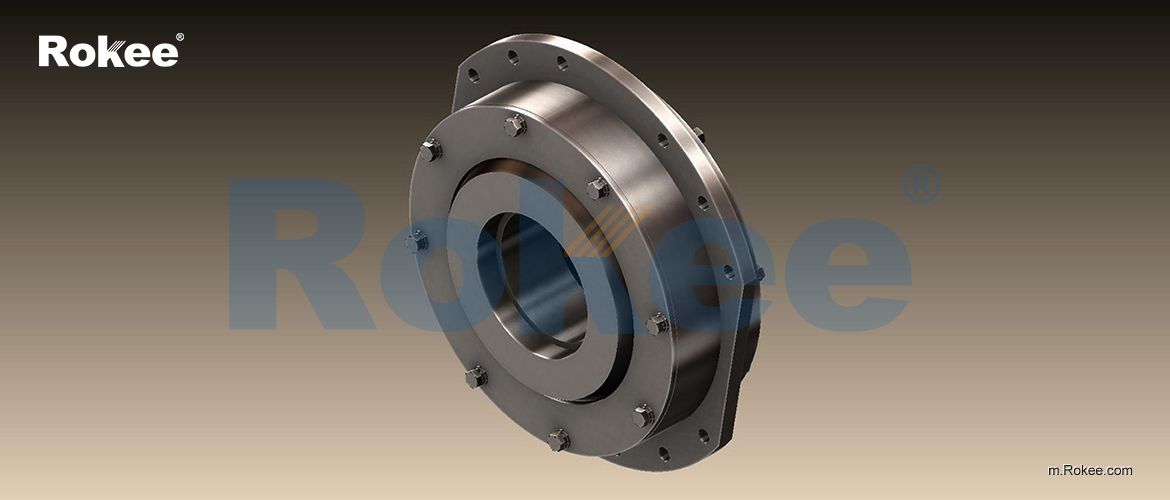

The ball and drum gear drum coupling is a drum coupling developed by Rokee with a more reliable structure, higher compensation ability and higher safety factor. The outer sleeve adopts a spherical drum tooth design, which has low requirements for shafting installation accuracy, large transmission torque, strong overload capacity and can withstand great radial load. The connection size is the same as that of DC series, but the bearing capacity is increased by more than 30%. The innovative spherical sealing technology makes this type of product maintain excellent lubrication and greatly improve its service life.

Model	Allowable Rotating Speed	Nominal Torque	Radial Load	Shaft Hole		Overall Dimensions									Drum Connection Size							Wear Scale	Angular Compensation	Rotational Inertia	Quality
	Allowable Rotating Speed	Nominal Torque	Radial Load	Aperture	Length	Overall Dimensions									Drum Connection Size							Wear Scale	Angular Compensation	Rotational Inertia	Quality

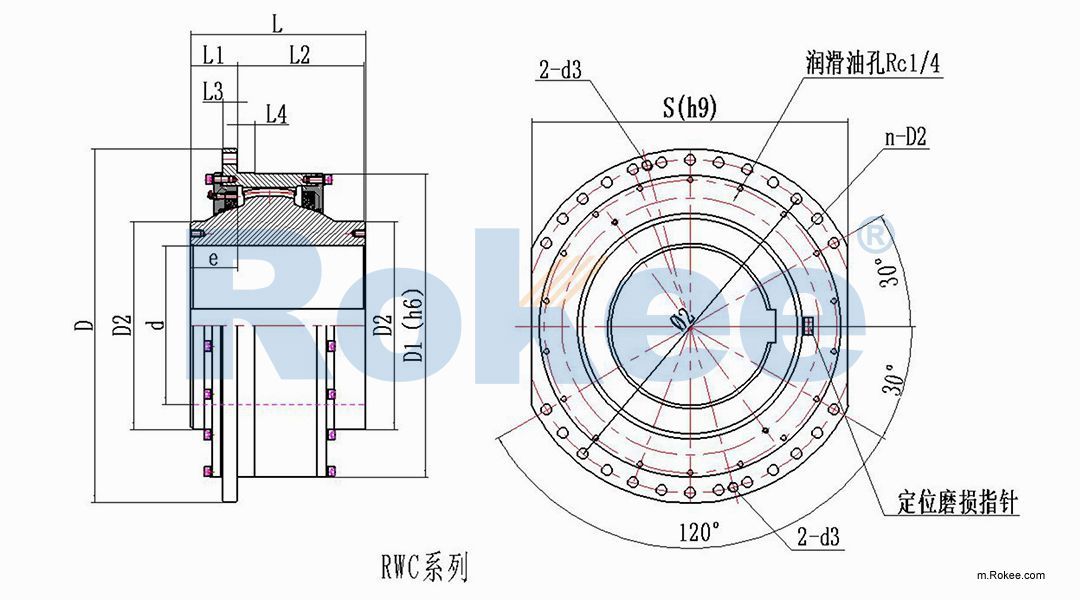

	n r/min	Tmax N.m	Frmax N	D(H7)	L	D	D1(h6)	L₁		L₂	L₃	L₄	L₅	L₆	Sh9	φ₂	n-d2	Bolt	a	2-d3	r	m₁	max	I	m
	n r/min	Tmax N.m	Frmax N	mm		mm									mm				a	mm		o		Kg·m²	kg
RWC01A	200	16000	18500	110	185	400	280	80	85		15	25	26	11	360	360	10-18	M16	30	M16	2.5	0.8	1.5	0.795	78
RWC01B	200	16000	18500	110	185	400	280	80	85		20	25	21	11	360	360	10-18	M16	30	M16	2.5	0.8	1.5	0.795	78
RWC02A	200	22400	25500	125	200	420	310	80	95		15	25	26	11	380	380	10-18	M16	30	M16	2.5	0.8	1.5	1.45	98
RWC02B	200	22400	25500	125	200	420	310	80	95		20	25	21	11	380	380	10-18	M16	30	M16	2.5	0.8	1.5	1.45	98
RWC03A	200	31500	36000	150	225	450	340	80	105		20	25	34	11	400	400	10-22	M20	30	M20	2.5	1.1	1.5	2.45	118
RWC03B	200	31500	36000	150	225	450	340	80	105		20	25	34	11	400	400	10-22	M20	30	M20	2.5	1.1	1.5	2.45	118
RWC35A	200	45000	50500	160	255	500	380	95	115		20	30	34	15	460	450	10-22	M20	30	M20	2.5	1.4	1.5	2.85	145
RWC35B	200	45000	50500	160	255	500	380	95	115		25	30	29	15	460	450	10-22	M20	30	M20	2.5	1.4	1.5	2.85	145
RWC04A	200	63000	71500	200	252	550	420	95	130		20	30	34	15	500	500	10-22	M20	30	M20	2.5	1.4	1.5	4.45	185
RWC04B	200	63000	71500	200	252	550	420	95	130		25	30	29	15	500	500	10-22	M20	30	M20	2.5	1.4	1.5	4.45	185
RWC05A	200	90000	90500	220	265	580	450	95	145		20	30	34	15	550	550	14-22	M20	20	M20	2.5	1.8	1	7.2	240
RWC05B	200	90000	90500	220	265	580	450	95	145		25	30	29	15	550	550	14-22	M20	20	M20	2.5	1.8	1	7.2	240
RWC55A	200	125 000	113 000	240	290	620	500	101	160		25	35	35	19	560	560	14-22	M20	20	M20	2.5	1.8	1	10.18	325
RWC55B	200	125 000	113 000	240	290	620	500	101	160		30	35	30	19	560	560	14-22	M20	20	M20	2.5	1.8	1	10.18	325
RWC06A	200	160 000	142 000	260	300	650	530	101	170		25	35	35	19	580	600	14-22	M20	20	M20	2.5	1.8	1	15.42	380
RWC06B	200	160 000	142 000	260	300	650	530	101	170		30	35	30	19	580	600	14-22	M20	20	M20	2.5	1.8	1	15.42	380
RWC07A	200	224 000	180 000	280	310	680	560	101	180		25	35	35	19	600	630	26-22	M20	10	M20	4	1.8	1	21.4	480
RWC07B	200	224 000	180 000	280	310	680	560	101	180		30	35	30	19	600	630	26-22	M20	10	M20	4	1.8	1	21.4	480
RWC08A	200	315 000	225000	300	345	720	600	111	185		35	43	35	21	640	660	26-26	M24	10	M24	4	2.2	1	30.55	540
RWC08B	200	315 000	225000	300	345	720	600	111	185		35	43	35	21	640	660	26-26	M24	10	M24	4	2.2	1	30.55	540
RWC09A	200	450 000	285000	340	380	780	670	111	200		35	43	35	21	700	730	26-26	M24	10	M24	4	2.2	0.5	40.05	645
RWC09B	200	450 000	285000	340	380	780	670	111	200		35	43	35	21	700	730	26-26	M24	10	M24	4	2.2	0.5	40.05	645
RWC10A	200	560 000	360 000	380	420	850	730	111	215		35	43	35	21	760	800	26-26	M24	10	M24	4	2.2	0.5	64.95	885
RWC10B	200	560 000	360 000	380	420	850	730	111	215		35	43	35	21	760	800	26-26	M24	10	M24	4	2.2	0.5	64.95	885
RWC11B	200	710000	450000	420	420	950	800	120	240		40	50	35	26	840	880	26-32	M30	10	M24	5	3	0.5	100	1000
RWC12B	200	1000000	600000	460	440	1010	850	127	256		46	50	36	30	890	940	26-32	M30	10	M24	5	3	0.5	140	1225
RWC13B	200	1250000	750000	500	470	1090	930	133	282		50	55	36	32	960	1020	26-32	M30	10	M24	5	3	0.5	207	1540
RWC14B	200	1600000	900000	540	490	1170	1010	140	297		55	60	36	36	1030	1100	26-32	M30	10	M30	5	3	0.5	310	1922
RWC15B	200	2000000	1100000	580	510	1270	1090	145	318		60	70	36	40	1120	1200	26-32	M30	10	M30	5	3	0.5	449	2395
RWC16B	200	2500000	1300000	640	540	1430	1240	145	246		60	70	36	40	1260	1360	26-32	M30	10	M30	6	4	0.5	809	3370
RWC17B	200	3150000	1600000	700	570	1540	1340	159	365		70	80	38	50	1360	1460	26-38	M36	10	M30	6	4	0.5	1177	4170
RWC18B	200	4000000	2000000	780	600	1640	1440	159	394		70	80	38	50	1460	1560	26-38	M36	10	M30	6	4	0.5	1634	4930
