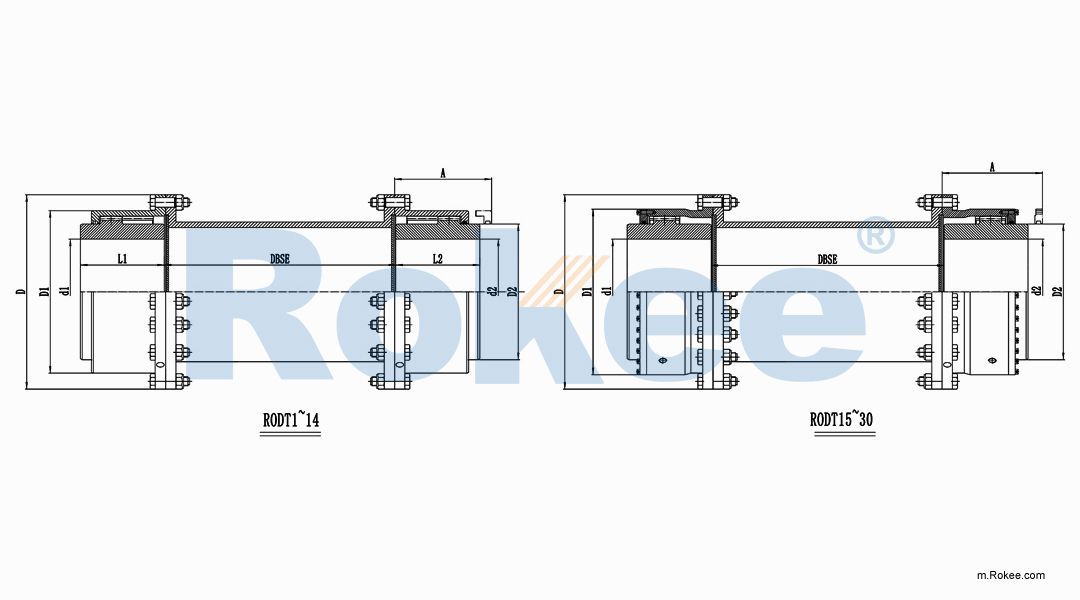

RODT Indirect Tube Drum Gear Coupling

The RODT Drum Gear Coupling is an extended type of ROD series coupling, suitable for increasing transmission distance.

Model	Rated Torque	Maximum Torque	Maximum Speed	Basic Size						Weight	Weight of The Connecting Shaft (/100mm)	Rotational Inertia	Rotational Inertia of The Connecting Shaft (/100mm)	Lubricant Usage
Model	Nm	Nm	1/min	D	D1	D2	d1-d2	L1-L2	A	Kg	Kg	J(Kgm²)	J(Kgm²)	Kg
RODT01	1900	3800	6000	110	82	68	14-50	43	53	13	1	0.016	0.0008	0.03
RODT02	3000	5940	4800	140	104	85	17-62	50	65	22	1.2	0.043	0.0015	0.06
RODT03	6200	12200	4300	170	127	106	20-80	62	80	39	1.7	0.101	0.003	0.09
RODT04	9300	18400	4000	210	155	132	26-98	76	95	78	2.5	0.292	0.009	0.12
RODT05	15400	31000	3800	235	182	150	30-112	90	110	105	2.9	0.47	0.012	0.3
RODT06	25300	49600	3800	270	210	175	35-133	105	125	136	4	1.07	0.02	0.4
RODT07	38600	76400	3200	310	248	206	70-158	120	140	213	4.8	1.973	0.039	0.6
RODT08	48800	96500	2900	338	275	235	85-174	135	155	272	6.8	2.78	0.071	0.8
RODT09	75300	147800	2800	378	306	252	95-192	150	180	325	10.2	5.25	0.164	1.4
RODT10	93000	181400	2500	400	330	274	105-210	175	205	360	12.2	6.38	0.198	2.5
RODT11	166100	327200	2200	445	365	305	120-232	190	218	440	14.5	9.18	0.279	3.0
RODT12	226000	447000	1700	508	425	355	130-276	220	252	660	17.6	17.98	0.525	4.5
RODT13	242000	480000	1300	540	465	368	140-282	250	300	770	25	22.9	0.723	3.0
RODT14	275000	543000	1150	580	500	405	160-312	270	320	940	28	33.35	0.998	3.6
RODT15	352000	696000	1050	648	546	450	170-345	290	340	1180	31.5	53.45	1.46	4.8
RODT16	440000	880000	990	685	582	486	190-372	325	370	1450	36.4	70.66	1.65	5.0
RODT17	561000	1122000	950	760	642	520	220-390	245	400	1850	46.6	109.2	2.55	9.0
RODT18	726000	1452000	900	800	684	555	245-425	265	420	2080	48	142	3.212	9.8
RODT19	858000	1716000	860	840	720	590	275-465	400	450	2500	56	194.76	4.61	11.5
RODT20	1100000	2200000	800	920	760	640	300-505	410	490	2998	61.5	280.55	5.99	11.5
RODT21	1320000	2640000	740	990	844	704	325-555	430	520	3600	65	388.98	8.08	14.5
RODT22	1760000	3520000	700	1040	895	744	350-595	470	550	4400	83	533.22	11.74	23.0
RODT23	1980000	3960000	640	1142	970	810	375-625	500	600	5475	89.3	782.15	13.66	23.0
RODT24	2090000	4180000	600	1185	1015	835	400-660	520	630	5940	92.5	927.93	14.65	30.0
RODT25	2310000	4620000	550	1230	1060	870	425-690	540	650	6830	95	1190	17.42	36.0
RODT26	2860000	5720000	520	1280	1130	928	450-735	570	680	7760	105	1498	24.25	38.0
RODT27	4180000	8360000	460	1390	1240	1020	475-800	600	725	9990	142	2281	38.9	46.0
RODT28	5962000	11924000	420	1550	1375	1130	500-900	670	800	14300	176	4088	63.24	57.0
RODT29	7975000	15950000	380	1700	1560	1280	525-1000	740	890	18748	198.4	6266	91.325	75.0
RODT30	9515000	19030000	350	1860	1685	1430	550-1100	800	980	23950	230	9240	118.745	115.0
