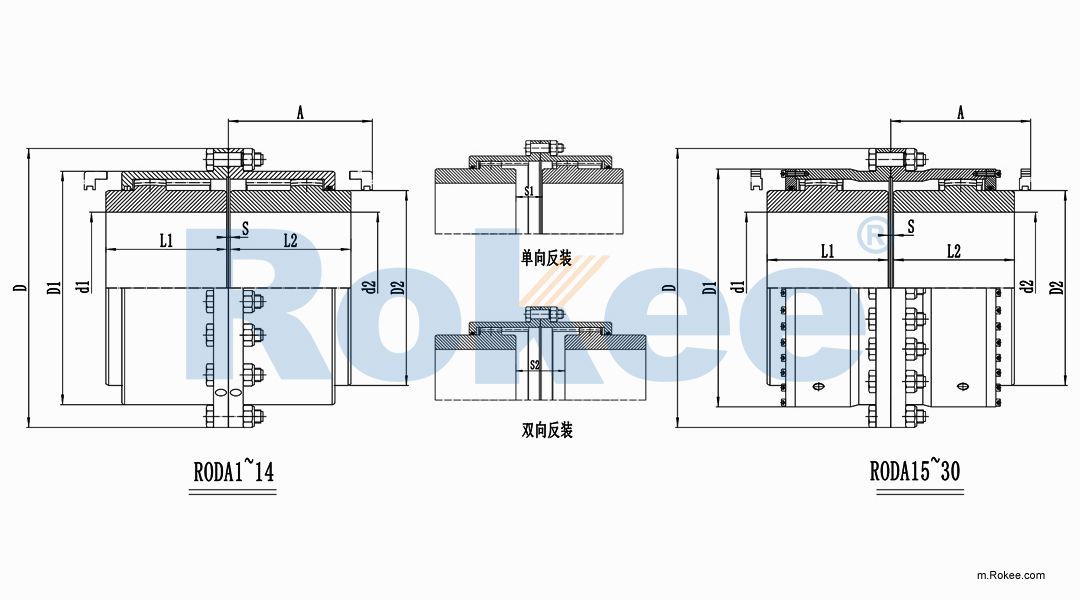

RODA Drum Gear Coupling

The RODA Drum Gear Coupling is the basic type of ROD series coupling, suitable for most situations where the compensation of transmission distance and motion position does not require special increase.

Model	Rated Torque	Maximum Torque	Maximum Rotating Speed	Basic Size									Weight	Rotational Inertia(4)	Torsional Stiffness(4)	Grease
Model	Nm	Nm	1/min	D	D1	D2	d1-d2 (2)	L1-L2	S	S1	S2	A	Kg	J(Kgm²)	MNm/rad	Kg
RODA01	1900	3800	8800	110	82	68	14-50	43	3	5	7	56	4	0.005	2.51	0.03
RODA02	3000	5940	7200	140	104	85	17-62	50	3	8	13	62	8	0.016	5.79	0.06
RODA03	6200	12200	6200	170	127	106	20-80	62	3	14	25	75	14	0.040	8.76	0.09
RODA04	9300	18400	5300	210	155	132	26-98	76	5	12	19	90	26	0.11	16.46	0.12
RODA05	15400	31000	5000	235	182	150	30-112	90	5	24	43	105	39	0.20	21.86	0.3
RODA06	25300	49600	4800	270	210	175	35-133	105	6	27	48	120	58	0.45	34.87	0.4
RODA07	38600	76400	4100	310	248	206	70-158	120	6	32	58	135	91	0.88	60.06	0.6
RODA08	48800	96500	3800	338	275	235	85-174	135	8	37	66	158	115	1.33	69.56	0.8
RODA09	75300	147800	3400	378	306	252	95-192	150	8	50	92	180	165	2.48	113	1.4
RODA10	93000	181400	3200	400	330	274	105-210	175	8	52	96	200	211	3.59	119	2.5
RODA11	166100	327200	2900	445	365	305	120-232	190	8	58	108	214	260	5.00	140	3.0
RODA12	226000	447000	2500	508	425	355	130-276	220	10	72	134	245	411	10.39	216	4.5
RODA13	242000	480000	2300	540	465	368	140-282	250	16	96	176	295	527	14.94	118	3.0
RODA14	275000	543000	2100	580	500	405	160-312	270	16	106	196	315	676	22.93	274	3.6
RODA15	352000	696000	1900	648	546	450	170-345	290	16	126	236	335	884	36.84	387	4.8
RODA16	440000	880000	1800	685	582	486	190-372	325	20	150	280	365	1105	53.16	434	5.0
RODA17	561000	1122000	1700	760	642	520	220-390	245	20	149	278	395	1379	79.63	637	9.0
RODA18	726000	1452000	1500	800	684	555	245-425	265	20	166	312	415	1667	110	817	9.8
RODA19	858000	1716000	1400	840	720	590	275-465	400	20	180	340	445	2043	153	966	11.5
RODA20	1100000	2200000	1300	920	760	640	300-505	410	25	176	327	485	2452	217	1.180	11.5
RODA21	1320000	2640000	1100	990	844	704	325-555	430	25	185	345	515	3035	313	1.533	14.5
RODA22	1760000	3520000	950	1040	895	744	350-595	470	25	215	405	545	3720	434	1.827	23.0
RODA23	1980000	3960000	900	1142	970	810	375-625	500	30	228	425	595	4648	633	2.117	23.0
RODA24	2090000	4180000	850	1185	1015	835	400-660	520	30	226	422	620	5152	765	2.383	30.0
RODA25	2310000	4620000	800	1230	1060	870	425-690	540	30	238	446	640	5954	990	2.991	36.0
RODA26	2860000	5720000	750	1280	1130	928	450-735	570	30	260	490	670	6956	1.277	3.361	38.0
RODA27	4180000	8360000	700	1390	1240	1020	475-800	600	30	250	470	715	9036	1.980	4.557	46.0
RODA28	5962000	11924000	660	1550	1375	1130	500-900	670	35	275	515	790	13330	3.663	7.743	57.0
RODA29	7975000	15950000	600	1700	1560	1280	525-1000	740	35	275	515	880	17975	5.766	9.391	75.0
RODA30	9515000	19030000	560	1860	1685	1430	550-1100	800	35	300	565	970	23150	8.683	10.967	115.0
