RLAR Single Shaft Sleeve Reverse-mounting Diaphragm Coupling

Single side shaft sleeve reverse installation design, suitable for occasions with limited shaft head distance.

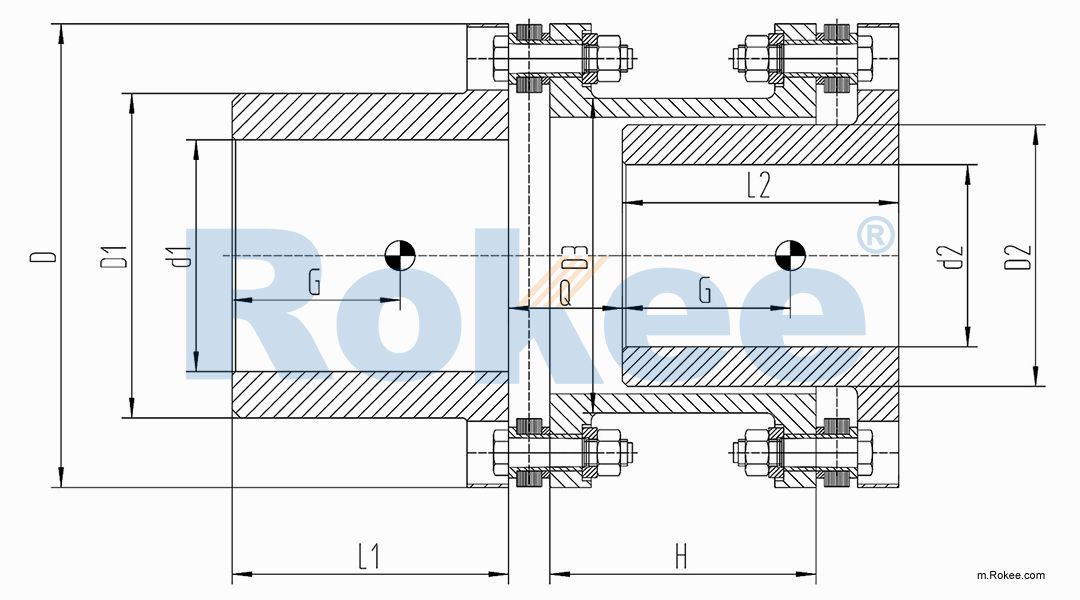

Model	D	D₁/D₂	D₃	d_1(max)	d_2(max)	L₂/L₁ (Standard/ Long Series)	Q Min	Maximum Allowable Speed	Nominal Torque	Maximum Instantaneous Torque	Peak Torque
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	n max (r/min)	T (N.m)	Tmax (N.m)	Tmax (N.m)
RLAR115-6	115	74/65	68	50	40	60/110	12	14000	650	1850	1290
RLAR135-6	135	95/85	82	65	55	80/110-140	12	11800	1180	2478	1350
RLAR155-6	155	106/94	96	75	65	90/140	15	10000	2100	2780	2780
RLAR175-6	178	121/108	117	85	75	100/140-170	15	8500	3580	5600	7200
RLAR200-6	200	140/127	122	100	85	120/170-210	15	7800	5000	7800	8000
RLAR225-6	225	168/152	144	120	105	140/170-210	15	6500	8500	13200	13200
RLAR235-6	235	161/152	158	120	105	140/170-210	20	5800	9000	14040	14000
RLAR255-6	255	179/164	171	130	110	160/210-250	20	5200	13500	21060	21600
RLAR280-6	278	165/182	193	145	125	170/210-250	25	4350	20250	31500	31500
RLAR300-6	300	212/198	230	155	135	200/250	25	3880	30500	47500	38500
RLAR325-6	325	235/219	228	170	150	200/250-300	25	3500	32500	78500	61000
RLAR370-6	365	258/242	269	190	165	230/300	30	3100	42000	95800	85000
RLAR203-8	203	148/135	164	90-110/148	90	140/170-210	15	8000	9000	19500	14700
RLAR235-8	235	165/152	164	105-120/165	105	140/170-210	20	7800	13500	47800	35900
RLAR255-8	255	177/165	190	110-130/177	110	160/210-250	25	6600	20250	63000	47400
RLAR290-8	290	212/198	199	135-150/212	135	180/250	25	6100	30500	73500	55400
RLAR340-8	340	250/235	215	160-180/250	160	200/250-300	25	5250	32500	122000	92500
RLAR370-8	365	264/250	241	170-190/264	170	210/250-300	30	4250	42000	163000	124000
RLAR400-8	398	277/257	269	175-200/277	175	250/300-250	35	3900	72000	225000	171000
RLAR430-8	430	315/293	321	200-230/315	200	250/350-410	35	3580	95000	250000	191000
RLAR480-8	480	346/327	346	220-250/346	255	250/350-410	35	3200	125000	400000	300000
RLAR530-8	530	393/374	390	255-290/393	260	300/350-410	35	3000	200000	448000	335000
RLAR600-8	600	440/420	390	290-320-440	290	350/410-470	40	3000	250000	668000	501000
RLAR370-10	365	264/250	241	170-190/264	170	210/250-300	30	4250	42000	163000	124000
RLAR400-10	398	2778257	269	175-200/277	175	250/300-250	35	3900	72000	225000	171000
RLAR430-10	430	315/293	321	200-230/315	200	250/350-410	35	3580	95000	250000	191000
RLAR500-10	480	346/327	346	220-250/346	255	250/350-410	35	3200	125000	400000	300000
RLAR530-10	530	393/374	390	255-290/393	260	300/350-410	35	3000	200000	448000	335000
RLAR600-10	600	440/420	390	290-320-440	290	350/410-470	40	3000	250000	668000	501000
RLAR760-10	760	525/475	525	375	340	500/470-520	40	2100	365000	569400	474500
RLAR860-10	860	585/518	584	420	370	520/570-600	45	1850	535000	834600	695500
RLAR950-10	950	658/592	658	470	420	570/600-620	60	1430	720000	1123200	936000
Model	Mass Point G	Angular Deviation	Axial Deviation	Intermediate Joint Sleeve H	Intermediate Sleeve Weight (m)	Intermediate Sleeve Rotational Inertia	Intermediate Sleeve Torsional Stiffness	Weight	Torsional Stiffness	Rotational Inertia	Angular Stiffness	Axial Force
Model	(mm)	(±△º)	(±△mm)	standard/min(mm)	kg/m	Jh (Kg.m²)	Ct10E6 (N.m/rad)	(Kg)	Ct10E6 (N.m/rad)	J (Kg.m²)	N.m/deg	N
RLAR115-6	15.9/48.2	0.67°	1.4	80/55	5.3	0.005	0.051	4	0.13	0.006	200.8	510
RLAR135-6	22.8/59.1		1.4	100/55	8.82	0.014	0.143	63	0.14	0.013	114.5	830
RLAR155-6	24.8/65.7		1.4	100/60	9.93	0.02	0.203	11.92	0.2	0.025	157.9	1070
RLAR175-6	27.9/75.1		1.4	140/75	11.49	0.031	0.314	17.18	0.44	0.055	227	1630
RLAR200-6	36/86		1.4	140/75	15.04	0.055	0.571	24.88	0.45	0.1	203.3	1860
RLAR225-6	45.2/94.1		1.6	140/75	19.17	0.115	1.175	36.17	0.63	0.19	147.9	1430
RLAR235-6	43.2/102.4		1.6	140/85	21.63	0.106	1.066	52.24	0.84	0.21	198.1	2510
RLAR255-6	48.5/113.5		2	180/90	23.38	0.146	1.487	71.77	1.41	0.33	526.4	3220
RLAR280-6	52.8/123		2	200/100	30.21	0.232	2.361	94.83	1.44	0.51	435.6	4550
RLAR300-6	65.8/137.8		2	200/100	32.97	0.301	3.069	131.63	1.38	0.73	382.9	4860
RLAR325-6	62.2/143.5		2	250/125	44.12	0.49	4.989	156.6	2.51	1.3	533.3	6150
RLAR370-6	70.2/167.3		2	250/140	57.21	0.77	7.860	218.3	3.96	2.24	707.6	8070
RLAR203-8	43.3/97.7	0.5°	2	140/75	19.100	0.08	0.811	24.500	0.99	0.12	651.3	2240
RLAR235-8	41.9/104.4		2	180/90	25.2	0.132	1.344	38	2.23	0.25	1533	4030
RLAR255-8	47.1/119.2		2.2	200/100	29	0.178	1.81	46.9	2.63	0.36	1495	5930
RLAR290-8	59/124.65		D2.4	200/100	32.800	0.301	3.068	71.000	3.45	0.71	1130	6380
RLAR340-8	65.3/141.7		3.8	250/125	42.300	0.602	6.123	111.000	4.98	1.6	1999	7420
RLAR370-8	66.45/152.65		4.2	252/140	58.700	0.833	8.485	139.000	8.26	2.3	3338	11350
RLAR400-8	74.48/184		4.8	300/155	75.400	1.129	11.509	180.000	12.24	3.42	8431	15380
RLAR430-8	80.09/179.58		5.2	350/155	79.850	1.584	16.14	215.500	14.23	4.92	6401	16090
RLAR480-8	78.89/185.88		5.5	350/180	104.400	2.57	26.183	302.000	18.89	8.78	6357	19330
RLAR530-8	98.68/212.79		6	400/180	132.8	4.29	43.682	408	22.17	14.53	7.86	23110
RLAR600-8	114.18/248.5		7	450/205	168.95	6.87	70.033	607	31.32	27.02	8478	27310
RLAR370-10	66.45/152.65	0.25°	2.8	252/140	58.700	0.6	6.13	139.000	8.95	1.64	13740	13650
RLAR400-10	74.48/184		3	300/155	75.400	0.86	8.485	180.000	12.24	2.34	30120	17810
RLAR430-10	80.09/179.58		3.3	350/155	79.850	1.13	11.509	215.500	14.23	3.48	26750	19330
RLAR500-10	78.89/185.88		3.7	350/180	104.400	1.58	16.144	310.000	37.32	58.15	29000	25300
RLAR530-10	98.68/212.79		4.2	400/180	132.8	2.57	26.18	420	32.16	9.08	33400	28290
RLAR600-10	114.18/248.5		5.2	450/205	168.95	4.29	43.68	625	39.98	14.98	37650	37500
RLAR760-10	261.444		5.8	265	197.708	6.87	70.63	895.000	55.42	28.02	42410	44580
RLAR860-10	267.654		5.8	290	284.050	7.98	89.65	1105.125	68.75	32.45	54675	52870
RLAR950-10	313.875		6.2	290	333.215	9.85	101.23	1854.832	78.65	37.65	69540	68750
