GCLD Drum Gear Coupling

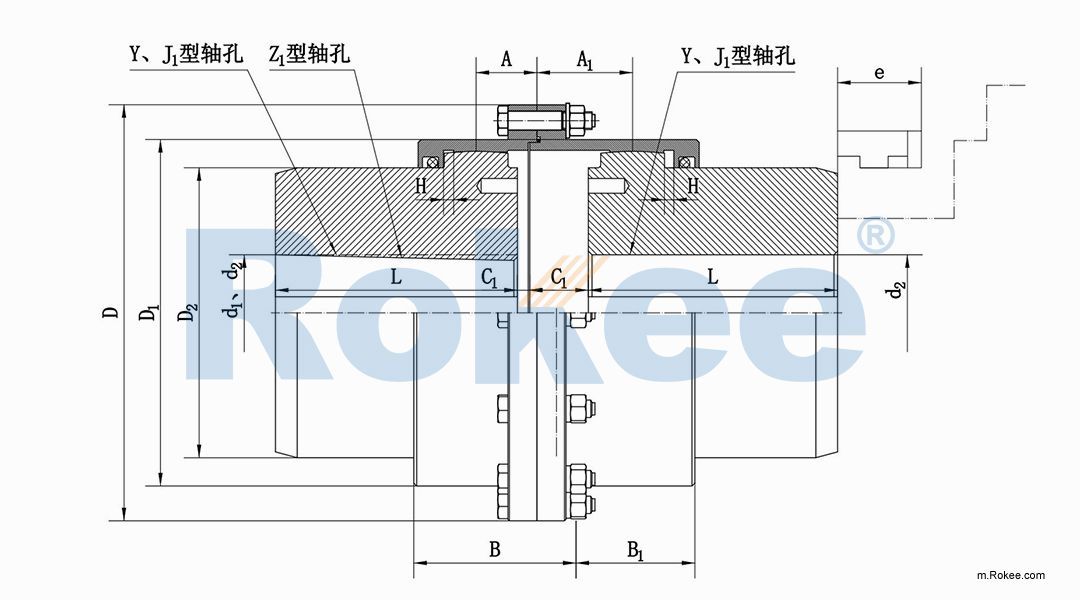

GCLD drum gear coupling is generally used for direct connection with the motor, so it generally has a higher speed and compact structure.

Model	Rated Torque	Allowable Rotating Speed	Shaft Hole Diameter	Shaft Hole Length L		D	D₁	D₂	C	C₁	H	B	B₁	B₂	Rotational Inertia	Quality	Grease
	Rated Torque	Allowable Rotating Speed	Shaft Hole Diameter	Y	J₁,Z₁	D	D₁	D₂	C	C₁	H	B	B₁	B₂	Rotational Inertia	Quality	Grease
	kN·m	rpm	d₁,d₂,d_z	mm											kg ·m²	kg	ml
GCLD1	1.60	5600	22,24	52	38	127	95	75	27	4	2	66	45	42	0.00875	6.2	107
			25,28	62	44										0.01025	7.2
			30,32,35,38	82	60										0.011	7.8
			40,42,45,48,50,55,56	112	84										0.01175	9.6
GCLD2	2.80	5100	38	82	60	149	116	90	26.5	4	2	70	49	42	0.02125	11.2	137
			40,42,45,48,50,55,56	112	84				26.5						0.02425	14
			60,63,65	142	107				33						0.0215	16.4
GCLD3	4.50	4600	40,42,45,48,50,55,56	112	84	167	134	105	33	5	2.5	80	54	42	0.04	17.2	201
GCLD3	4.50	4600	60,63,65,70,71,75	142	107	167	134	105	33	5	2.5	80	54	42	0.0475	22.4	201
GCLD4	6.30	4300	45,48,50,55,56	112	84	187	153	125	33.5	5	2.5	81	55	42	0.0725	25.2	238
			60,63,65,70,71,75	142	107				33.5						0.0825	26.4
			80,85,90	172	132				38						0.095	35.6
GCLD5	8.00	4000	50,55,56	112	84	204	170	140	37.5	5	2.5	89	59	42	0.1125	31.6	398
			60,63,65,70,71,75	142	107										0.1175	38
			80,85,90,95	172	132										0.1450	44.6
			100,(105)	212	167				43.5						0.1674	53.9
GCLD6	11.2	3700	55,56	112	84	230	186	155	43.5	6	3	106	71	47	0.1875	40.5	465
			60,63,65,70,71,75	142	107										0.21	49.8
			80,85,90,95	172	132										0.235	56.3
			100,110,(115)	212	167										0.2675	67.5
GCLD7	18.0	3350	60,63,65,70,71,75	142	107	256	212	180	48	6	3	112	73	47	0.13575	63.9	561
			80,85,90,95	172	132										0.40	74.7
			100,110,120,125	212	167										0.4625	88
			130,(135)	252	202										0.5275	106.7
GCLD8	25.00	3000	65,70,71,75	142	107	287	239	200	40.5	7	3.5	118	82	47	0.560	81.7	734
			80,85,90,95	172	132										0.6275	95.5
			100,110,120,125	212	167										0.72	114
			130,140,150	252	202				48						0.8125	123
GCLD9	35.5	2700	70,71,75	142	107	325	276	235	49.5	7	3.5	132	85	47	1.0775	112	956
			80,85,90,95	172	132										1.2075	130
			100,110,120,125	212	167										1.3825	156
			130,140,150	252	202										1.56	181
			160,170,(175)	302	242				58						1.77	212
GCLD10	56.00	2450	75	142	107	362	313	270	65	8	4	149	95	49	1.97	161	1320
			80,85,90,95	172	132										2.0725	172
			100,110,120,125	212	167										2.38	206
			130,140,150	252	202										2.5625	239
			160,170,180	302	242										3.055	280
			190,200,220	352	282				68						3.4225	319
