WJ Drum Coupling

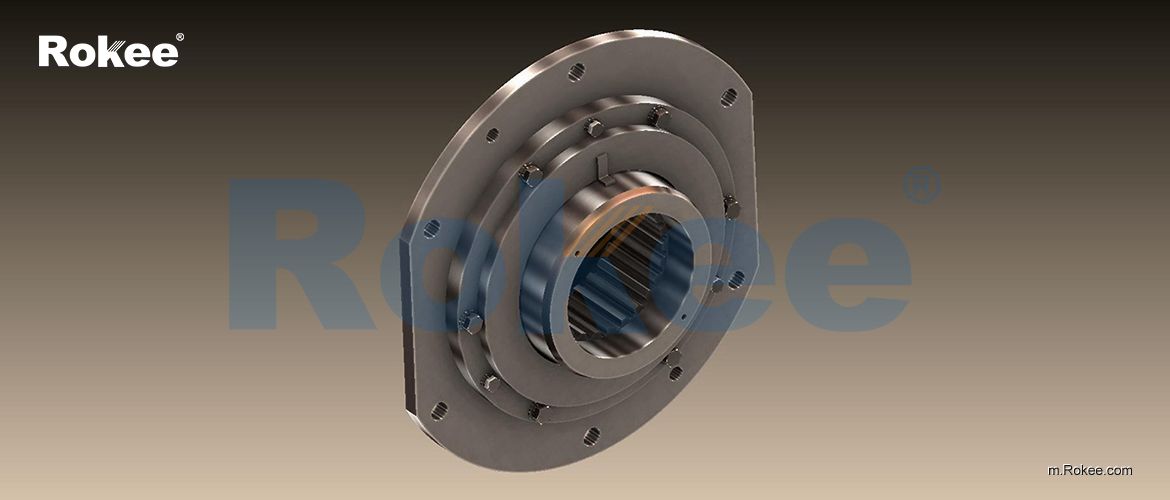

WJ Drum Coupling is a spherical roller coupling, which is composed of jacket with connecting flange, spherical roller, semi-coupling, inner and outer cover plate and sealing system, capable of transmitting large torque and bearing radial load.

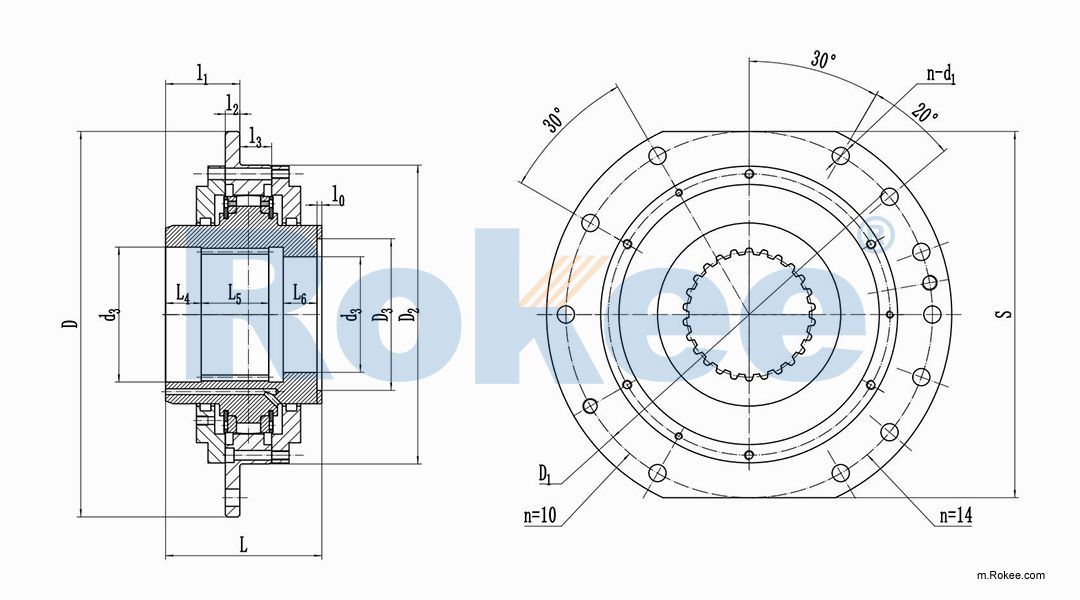

Model	Nominal Torque Tn KN ·m	Allowable Radial Force KN	Internal Spline d	D	D₁	D₂ h6	D₃	nxd₁	d₂ G6	d₃ G6	S h9	L	L	L₁	L₂	L₃	L₄	L₅	L₆	r	C	Wear Scale m	Rotational Inertia kg ·m²	Quality kg
WJ1	5	16.5	INT16Z×2.5m	250	220	160	一	10×φ14	35	45	220	80	0	42	12	12	12	30	18	2	1.6	4	0.06	13.2
WJ1	5	16.5	INT17Zx2.5m	250	220	160	一	10×φ14	38	48	220	80	0	42	12	12	12	30	18	2	1.6	4	0.06	12.2
WJ2	7.1	18.5	INT17Z×2.5m	280	250	180	一	10×φ14	38	48	250	80	0	42	12	24	22	30	18	2	1.6	4	0.12	19.8
WJ2	7.1	18.5	INT15Zx3m	280	250	180	一	10×φ14	40	50	250	80	0	42	12	24	22	30	18	2	1.6	4	0.12	18.8
WJ3	9	20	INT15Z×3m	320	280	200	一	10×φ18	40	50	280	84	0	45	13	25	22	30	22	2.2	1.6	4	0.20	22.1
WJ3	9	20	INT18Z×3m	320	280	200	一	10×φ18	50	60	280	84	0	45	13	25	22	30	22	2.2	2	4	0.20	21.8
WJ4	14	25	INT18Z×3m	340	300	220	一	10×φ18	50	60	300	92	0	45	15	25	22	30	30	2.2	2	4	0.27	28.9
WJ4	14	25	INT22Z×3m	340	300	220	一	10×φ18	60	70	300	92	0	45	15	25	22	35	25	2.2	2	4	0.27	28.8
WJ5	18	35	INT22Zx3m	360	320	240	一	10xφ18	60	70	320	92	0	45	15	25	22	35	25	2.2	2	6	0.36	35
WJ5	18	35	INT27Z×3m	360	320	240	一	10xφ18	70	85	320	97	0	45	15	25	22	40	25	2.2	2.5	6	0.36	34
WJ6	22.4	38.5	INT27Z×3m	380	340	260	一	10×φ18	70	85	340	97	0	45	15	25	22	40	25	2.2	2.5	6	0.48	40
WJ6	22.4	38.5	INT18Z×5m	380	340	260	一	10×φ18	80	100	340	127	0	45	15	25	37	50	25	2.2	2.5	6	0.48	41
WJ7	28	42	INT18Z×5m	400	360	280	150	10×φ18	80	100	360	127	10	57	15	33	37	50	25	3	2.5	6	0.60	51
WJ7	28	42	INT22Z×5m	400	360	280	150	10×φ18	100	120	360	137	0	57	15	33	37	55	30	3	2.5	6	0.60	47
WJ8	35.5	49	INT22Z×5m	420	380	310	168	10xφ18	100	120	380	137	20	77	15	33	37	55	30	3	2.5	6	0.86	59
WJ8	35.5	49	INT26Z×5m	420	380	310	168	10xφ18	120	140	380	157	0	77	15	33	37	70	35	3	3	6	0.86	57
WJ9	50	70	INT26Z×5m	450	400	340	215	10×φ22	120	140	400	157	0	87	20	28	37	70	35	3	3	6	1.32	78
WJ9	50	70	INT30Z×5m	450	400	340	215	10×φ22	140	160	400	167	0	87	20	28	37	75	40	3	3	6	1.32	75
WJ10	100	120	INT30Z×5m	550	500	420	260	10×φ22	140	160	500	167	20	95	20	38	37	75	40	3	3	8	3.44	129
WJ10	100	120	INT34Z×5m	550	500	420	260	10×φ22	160	180	500	182	0	95	20	38	37	85	45	3	3	8	3.44	126
WJ11	160	140	INT34Z×5m	580	530	450	285	14×φ22	160	180	530	182	0	95	20	38	37	85	45	3	3	8	4.23	151
WJ11	160	140	INT38Z×5m	580	530	450	285	14×φ22	180	200	530	192	0	95	20	38	37	95	45	3	4	8	4.23	146
WJ12	224	170	INT38Z×5m	650	600	530	315	14×φ22	180	200	580	192	15	120	25	33	37	95	45	3	4	8	7.52	210
WJ12	224	170	INT26Z×8m	650	600	530	315	14×φ22	190	222	580	207	0	120	25	33	37	105	45	3	4	8	7.52	205
WJ13	355	300	INT26Z×8m	680	630	560	385	26×φ22	190	222	600	207	0	120	25	35	37	105	45	4	4	8	9.81	236
WJ13	355	300	INT30Z×8m	680	630	560	385	26×φ22	220	254	600	222	0	120	25	35	37	120	45	4	5	8	9.81	229
WJ14	500	340	INT30Z×8m	710	660	600	395	26×φ26	220	254	640	222	15	140	35	43	37	120	45	4	5	8	14.76	301
WJ14	500	340	INT34Z×8m	710	660	600	395	26×φ26	250	286	640	237	0	140	35	43	37	135	45	4	5	8	14.76	293
WJ15	630	380	INT34Z×8m	780	730	670	445	26×φ26	250	286	700	237	25	160	35	43	37	135	45	4	5	8	24.14	398
WJ15	630	380	INT38Z×8m	780	730	670	445	26×φ26	280	318	700	262	0	160	35	43	37	150	55	4	5	8	24.14	395
WJ16	710	450	INT38Z×8m	850	800	730	445	26×φ26	280	318	760	262	25	180	35	43	37	150	55	4	5	8	34.40	483
WJ16	710	450	INT44Z×8m	850	800	730	445	26×φ26	320	366	760	287	0	180	35	43	37	170	60	4	6	8	34.40	451
WJ17	900	520	INT44Z×8m	950	900	840	585	26×φ26	320	366	860	287	25	200	45	55	37	170	60	4	6	8	74.63	797
WJ17	900	520	INT50Z×8m	950	900	840	585	26×φ26	360	420	860	352	0	200	45	55	52	220	60	4	8	8	74.63	793
