SWP-D Universal Coupling

SWP-D Universal Coupling adopts integrated fork head layout. Similar to the use of the SWC universal coupling, SWP-D Cardan Shaft is mainly used in the field of heavy-duty large equipment, with a rotary diameter of up to 1200mm.

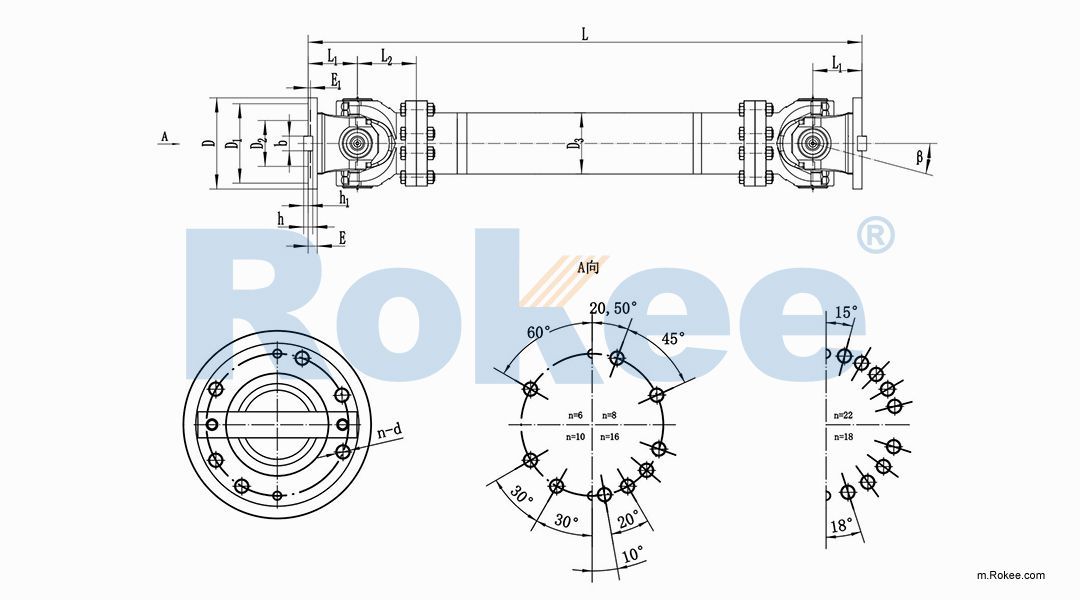

Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β (°)	Size / mm										Rotational Inertia kg ·m²		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β (°)	L_min	D1	D2 (H7)	D3	E	E1	bxh	h1	L1	Nxd	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWP160D	160	20	14	10	≤15	450	140	95	121	15	4	20×12	6	90	6×φ13	0.116	0.008	36	2.5
SWP180D	180	28	20	14	≤15	515	155	105	127	15	4	24×14	7	105	6×φ15	0.211	0.012	52	3.4
SWP200D	200	40	28	20	≤15	585	175	125	140	17	5	28×16	8	120	8×φ15	0.345	0.016	69	3.8
SWP225D	225	56	40	28	≤15	700	196	135	168	20	5	32×18	9	145	8×φ17	0.692	0.039	108	6.2
SWP250D	250	80	56	40	≤15	810	218	150	219	25	5	40×25	12.5	165	8×φ19	1.373	0.079	176	7.2
SWP285D	285	112	78	56	≤15	880	245	170	219	27	7	40×30	15	180	8×φ21	2.367	0.099	232	9.4
SWP315D	315	160	112	80	≤15	1000	280	185	273	32	7	40×30	15	205	10×φ23	3.993	0.219	322	12.8
SWP350D	350	224	157	112	≤15	1100	310	210	273	35	8	50×32	16	225	10×φ23	6.426	0.226	420	13.9
SWP390D	390	315	220	158	≤10	1100	345	235	273	40	8	70×36	18	215	10xφ25	9.690	0.303	510	21.1
SWP435D	435	450	315	225	≤10	1220	385	255	325	42	10	80×40	20	245	16×φ28	17.712	0.545	738	25.7
SWP480D	480	630	440	315	≤10	1400	425	275	351	47	12	90×45	22.5	275	16×φ31	29.088	0.755	1010	30.7
SWP550D	550	900	630	450	≤10	1520	492	320	426	50	12	100×45	22.5	305	16×φ31	55.252	1.435	1454	38.1
SWP600D	600	1250	875	625	≤10	1880	544	380	480	55	15	90×55	27.5	370	22×φ34	100.575	2.493	2235	53.2
SWP650D	650	1600	1120	800	≤10	2040	585	390	500	60	15	100×60	30	405	18×φ38	152.064	3.210	2880	65.1
